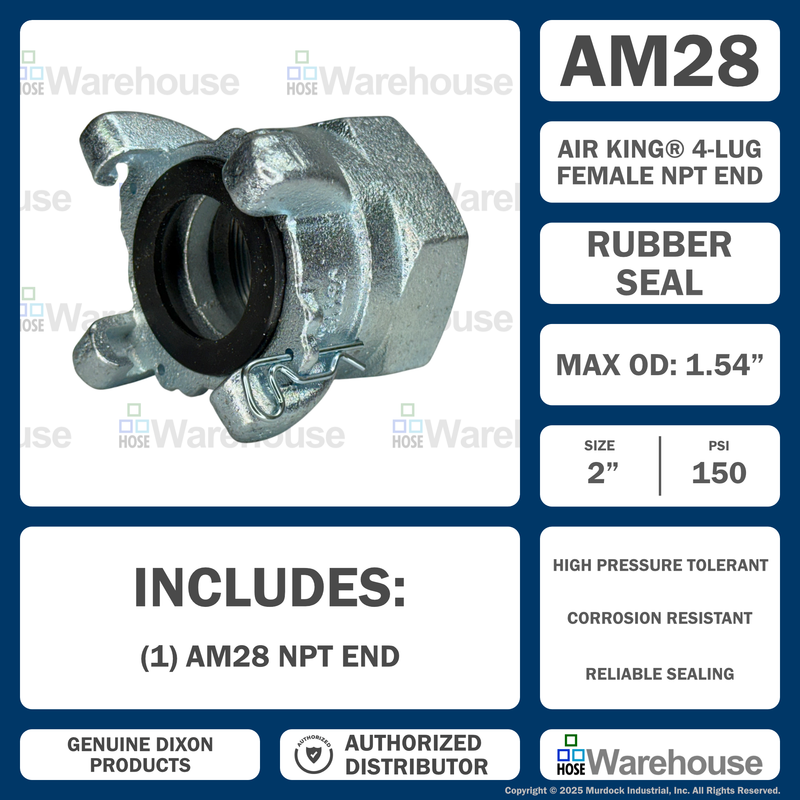

AM28 Air King® by Dixon Valve | Pneumatic Fitting | 4-Lug Threaded End | Chicago Style x 2" Female NPT | Iron

AM28 Air King® by Dixon Valve | Pneumatic Fitting | 4-Lug Threaded End | Chicago Style x 2" Female NPT | Iron

Save $2.64 Save $2.64
$31.33
$31.33 - $31.33
$31.33
$28.69
$28.69 - $28.69
$28.69

Dixon Valve
Air King® Universal Coupling | 4-Lug Threaded End | Chicago Style x Female NPT

Air King is for air and water service only.
Specifications for Variant SKU: AM28 Dixon
Shape (Orientation): Straight
Ends Configuration: 2in Female NPT, 4-Lug Chicago
Material(s): Iron
Seal Material(s): Rubber
Features:
  • Use with Boss clamps.
  • Supplied with safety clip
  • Supplied with rubber washer, part # AWR14
Specifications:
  • Air King meets pressure requirements as specified in A-A-59553 commercial item description superseding Mil Spec.WWC-633D.
  • Pressure rating: 150 PSI at ambient temperature 70°F (21°C).
Note:
  • Safety clips are the same size for both 2-lug and 4-lug, Air King Couplings.
Safety Notes:
  • Never use any Air King coupling for steam service!
  • Air King is for air and water service ONLY.
  • The use of an Air King safety clip or wire type retainer is necessary to ensure Air King universal couplings will not become accidentally disconnected.
  • Caution: Must use safety clips.
Iron
Part Number		 Size
AM18 1-1/4"
AM23 1-1/2"
AM28 2"
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
