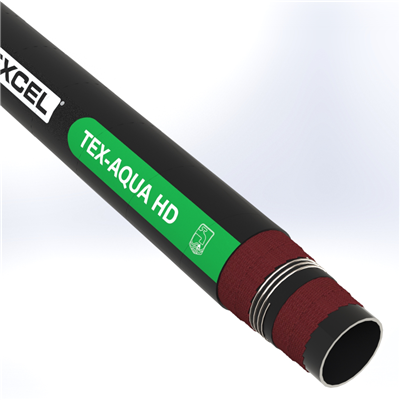

AQUA-HD-S-6.0 by Texcel | TEX-AQUA HD Series | Smooth Cover Heavy-Duty Water Suction & Discharge Hose | 6" Hose ID | 150 PSI | 25 in/Hg Vacuum Rated | Black

AQUA-HD-S-6.0 by Texcel | TEX-AQUA HD Series | Smooth Cover Heavy-Duty Water Suction & Discharge Hose | 6" Hose ID | 150 PSI | 25 in/Hg Vacuum Rated | Black

$34.53 - $2,877.00
$34.53
$30.69
$30.69 - $2,557.33
$30.69

Texcel
TEX-AQUA HD Series | Heavy-Duty Water Suction & Discharge Hose

Purchased Lengths of hose will be multiple pieces unless Product Option or Title specifies Exact Length.

Package Quantity: 20 Units

Specifications for Variant SKU: AQUA-HD-S-6.0-20N Texcel | 20 |
Series: TEX-AQUA HD Series
Hose Color(s): Black
Internal Diameter: 6in
Outer Diameter: 6.63in
Tubing Construction: SBR/EPDM Blend
Cover Construction: EPDM/SBR Blend
Technical Data:
Description: Constructed with the highest quality compounds to provide maximum flexibility, long life and lighter weight for easy handling. Tube: Black, SBR/EPDM blend
Cover: Black, SBR/EPDM blend Reinforcement: High tensile tire cord plies; helix wire
Safety Factor : 3:1 Temperature: -40°F to +180°F
Ends: Soft cuffs available on 6" and 8" sizes only Branding: TEXCEL® TEX-AQUA HD - HEAVY DUTY WATER SUCTION & DISCHARGE HOSE XXX PSI W.P.
Note: 6" and 8" available in a smooth or corrugated cover For extra flexibility use 5"-12" corrugated
SMOOTH COVER
Part Number Hose ID Hose OD Working Pressure (psi) Vacuum (in./HG) Bend Radius Lbs./ft
AQUA-HD-1.0-100 1" 1-19/64" 150 psi 29 4" 0.50 lbs
AQUA-HD-1.25 1-1/4" 1-45/64" 150 psi 29 5" 0.62 lbs
AQUA-HD-1.5 1-1/2" 2.03" 150 psi 29 7" 0.85 lbs
AQUA-HD-2.0 2" 2-28/64" 150 psi 29 10" 1.16 lbs
AQUA-HD-2.5 2-1/2" 2-56/64" 150 psi 29 11" 1.31 lbs
AQUA-HD-3.0 3" 3-29/64" 150 psi 29 12" 1.79 lbs
AQUA-HD-4.0 4" 4-32/64" 150 psi 29 14" 2.55 lbs
AQUA-HD-6.0 6" 6-40/64" 150 psi 25 19" 5.90 lbs
AQUA-HD-S-8.0 8" 8-40/64" 150 psi 25 20" 7.90 lbs
CORRUGATED COVER
Part Number Hose ID Hose OD Working Pressure (psi) Vacuum (in./HG) Bend Radius Lbs./ft
AQUA-HD-5.0-100N 5" 5-41/64" 150 psi 25 14" 4.50 lbs
AQUA-HD-5.0 5" 5-41/64" 150 psi 25 14" 4.50 lbs
AQUA-HD-6.0 6" 6-44/64" 150 psi 25 15" 5.50 lbs
AQUA-HD-8.0 8" 8-48/64" 150 psi 25 18" 7.50 lbs
AQUA-HD-10.0 10" 10-48/64" 150 psi 20 20" 8.50 lbs
AQUA-HD-12.0 12" 12-56/64" 150 psi 20 20" 12.00 lbs
