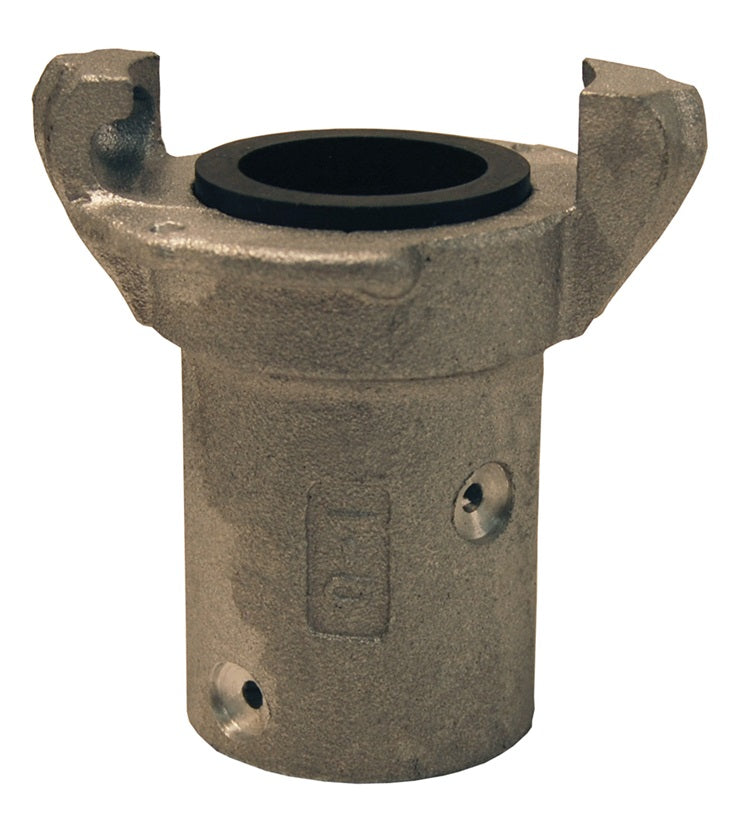

ASB150 by Dixon Valve | Sand Blast Coupling | Hose End | 1-1/2" Hose Size | 2-3/8" Hose OD | Aluminum

Save $2.42

$41.75

$41.75 - $41.75

$41.75

$39.33

$39.33 - $39.33

$39.33

Dixon Valve
Sand Blast Coupling | Hose End

Sand blast couplings are designed for use on sand blast hose.

Quantity

Specifications for Variant SKU: ASB150 Dixon
Shape (Orientation):	Straight
Material(s):	Aluminum

Features:
Designed for use on sand blast hose. Supplied with screws. Nozzle holders have 1-1/4" NPSM thread. Abrasive blasting equipment must have hose safety cables or hose coupling safety locks installed to read safety clips.
Specifications:
Pressure: 110 PSI at ambient temperature 70°F (21°C).
Installation:
1) Ends of hose must be cut square to fit snug against metal end. 2) Holding hose tight to end of fitting, insert screws and turn in full, putting screw 180° from first to ensure best centering. 3) After all screws have been placed, check tube opposite screws to be sure screws have not penetrated completely through. 4) On quick couplings, insert safety clips.

Brass Part Number	Aluminum Part Number	Hose Size	Hose O.D.
BSB75	ASB75	3/4"	1-1/2"
BSB100	ASB100	1"	1-7/8"
BSB125	ASB125	1-1/4"	2-5/32"
BSB150	ASB150	1-1/2"	2-3/8"

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
