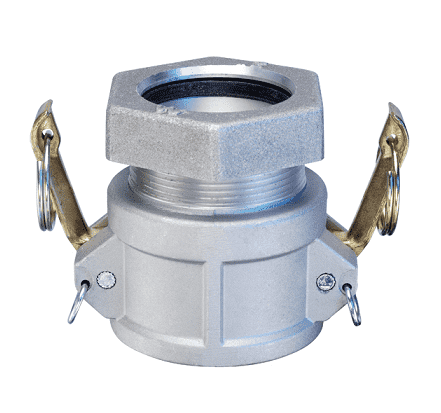

BCAL250 by Kuriyama | Quick-Acting Coupling | Part BC | 2-1/2" Female Coupler x 2-1/2" Compression | Aluminum

BCAL250 by Kuriyama | Quick-Acting Coupling | Part BC | 2-1/2" Female Coupler x 2-1/2" Compression | Aluminum

Save $14.92 Save $14.92
$52.22
$52.22 - $52.22
$52.22
$37.30
$37.30 - $37.30
$37.30

Kuriyama Couplings™ - Quick-Acting Couplings - Part BC - Female Coupler x Compression - Aluminum

Specifications for Variant SKU: BCAL250 Kuriyama
Shape (Orientation): Straight
Cam Type: Other
Ends Configuration: 2-1/2in Female Cam & Groove, 2-1/2in Tube Compression
Material(s): Aluminum, Brass
Seal Material(s): Buna-N/Nitrile Rubber
Applications:
  • Agriculture, Chemicals/Petroleum, Construction, Material Handling, Irrigation, Fracking.
  • For use with Kuriyama Hoses
  • All Compression Quick Couplers are fully interchangeable with any other adapters made to MIL Specs
Features:
  • All sizes except 1/2", 5" and 8" comply with Mil-Spec A-A-59326 for interchangeability.
  • 5" Size complies with ASTM specs for interchangeability.
  • 1/2" x 1/2" are not specified under Mil Specs.
  • All 8" and 10" female couplers supplied with 4 locking handles, safety clips, pull rings and chains.
  • Aluminum alloy is specially designed for high tensile strength, lightness and rigidity.
  • Locking feature using safety clips to prevent disconnection during use on all sizes except 1/2".
  • Hose shanks specially designed for easy assembly with Tigerflex type hoses
  • Aluminum couplings supplied with brass handles which results in less wear on connecting parts
Materials:
  • ASTM B85 Grade 383 aluminum alloy
  • Forged brass handles - aluminum items
  • Type 304 stainless steel handles - ALSH items
  • Zinc-plated carbon steel handle pins
  • Zinc-plated carbon steel pull rings
  • Zinc-plated carbon steel safety clips
  • Buna-N Gaskets
Part Number Female Coupler Compression Weight (Lbs.)
BCAL150 1-1/2" 1-1/2" 0.96 lbs
BCAL200 2" 2" 1.16 lbs
BCAL250 2-1/2" 2-1/2" 1.54 lbs
BCAL300 3" 3" 2.08 lbs
Kuriyama

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
