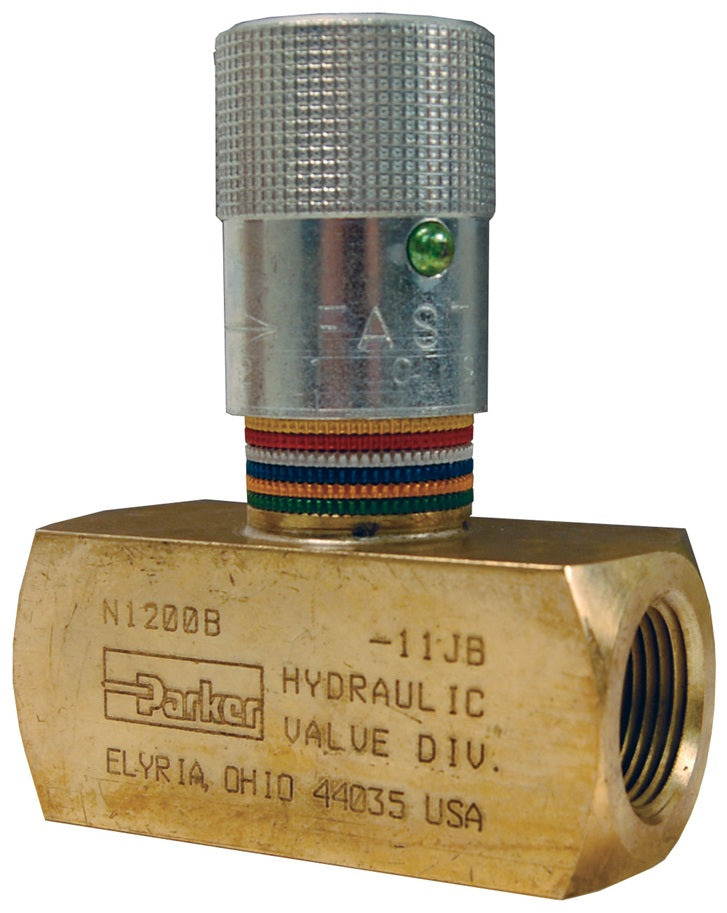

BN200 by Dixon Valve | Series-N | Flow Control Valve | 1/8" Female NPTF | Brass

BN200 by Dixon Valve | Series-N | Flow Control Valve | 1/8" Female NPTF | Brass

Save $7.00 Save $7.00
$82.89
$82.89 - $82.89
$82.89
$75.89
$75.89 - $75.89
$75.89

Dixon Valve
Series-N | Flow Control Valve

For use as speed control on hydraulic and pneumatic systems where a reverse flow check valve is not needed.
Specifications for Variant SKU: BN200 Dixon
Series: Series-N
Shape (Orientation): Straight
Ends Configuration: 1/8in Female NPT, 1/8in Female NPT, Some Ends Match
Material(s): Brass
Features:
  • Provides excellent control and reliable shutoff in a very small envelope
  • Color coded scale simplifies setting, resetting, adjusting, and quick return to a previous speed setting.
Material:
  • Brass
  • Seal: Nitrile
Specifications:
  • 1/8" - 3/4" maximum operating pressure: 2,000 PSI at ambient temperature 70°F (21°C), 1" 500 PSI at ambient temperature 70°F (21°C)
  • Operating Temperature Range: -20°F to 250°F (-29°C to 121°C)
  • Cracking pressure: 5 PSI
Part Number Female NPTF
BN200 1/8"
BN400 1/4"
BN600 3/8"
BN800 1/2"
BN1200 3/4"
BN1600 1/8"
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
