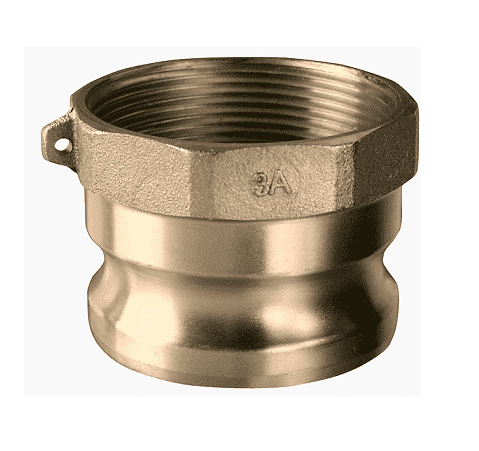

BR-A125 by Kuriyama | Quick-Acting Coupling | Part A | 1-1/4" Male Adapter x 1-1/4" Female NPT | Brass

Name: BR-A125 by Kuriyama | Quick-Acting Coupling | Part A | 1-1/4" Male Adapter x 1-1/4" Female NPT | Brass
Brand: Kuriyama
SKU: BR-A125 Kuriyama
Price: 19.91 USD
Availability: InStock

Save $0.57

$20.48

$20.48 - $20.48

$20.48

$19.91

$19.91 - $19.91

$19.91

Kuriyama Couplings™ - Quick-Acting Couplings - Part A - Male Adapter x Female NPT - Brass

Quantity

Specifications for Variant SKU: BR-A125 Kuriyama
Shape (Orientation):	Straight
Cam Type:	Type A
Ends Configuration:	1-1/4in Male Cam & Groove, 1-1/4in Female NPT
Material(s):	Brass

Applications:
Agriculture, Chemicals/Petroleum, Construction, Fracking, Irrigation, Material Handling For use with Kuriyama Hoses
Features:
All sizes except 1/2" and 5" comply with Mil-Spec A-A-59326 for interchangeability. 5" Size complies with ASTM specs for interchangeability. 1/2" x 1/2" are not specified under Mil Specs. Brass alloy is specially designed for high tensile strength and rigidity. Locking feature using safety clips to prevent disconnection during use on all sizes except 1/2".
Materials:
ASTM B584 Grade C85700 brass alloy. Forged brass handles. Type 304 stainless steel handle pins. Type 304 stainless steel pull rings. Zinc-plated carbon steel safety clips. Buna-N Gaskets.

Part Number	Size	Weight (Lbs.)
BR-A050	1/2" x 1/2"	0.15 lbs
BR-A075	3/4" x 3/4"	0.24 lbs.
BR-A100	1" x 1"	0.34 lbs.
BR-A125	1-1/4" x 1-1/4"	0.66 lbs.
BR-A150	1-1/2" x 1-1/2"	0.73 lbs.
BR-A200	2" x 2"	0.86 lbs.
BR-A250	2-1/2" x 2-1/2"	1.61 lbs.
BR-A300	3" x 3"	1.72 lbs.
BR-A400	4" x 4"	3.41 lbs.
BR-A500	5" x 5"	4.85 lbs.
BR-A600	6" x 6"	7.27 lbs.
