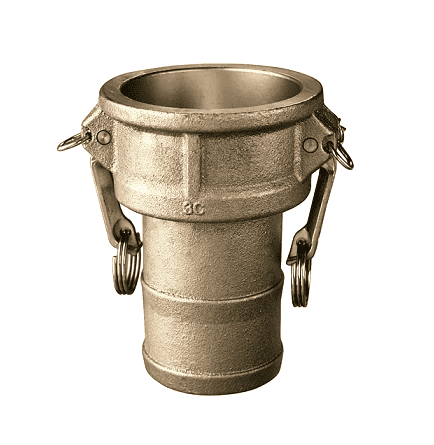

BR-C500 by Kuriyama | Quick-Acting Coupling | Part C | 5" Female Coupler x 5" Hose Shank | Brass

BR-C500 by Kuriyama | Quick-Acting Coupling | Part C | 5" Female Coupler x 5" Hose Shank | Brass

Save $104.58 Save $104.58
$366.02
$366.02 - $366.02
$366.02
$261.44
$261.44 - $261.44
$261.44

Kuriyama Couplings™ - Quick-Acting Couplings - Part C - Female Coupler x Hose Shank - Brass

Specifications for Variant SKU: BR-C500 Kuriyama
Shape (Orientation): Straight
Cam Type: Type C
Ends Configuration: 5in Female Cam & Groove, 5in Hose Barb
Material(s): Brass
Seal Material(s): Buna-N/Nitrile Rubber
Applications:
  • Agriculture, Chemicals/Petroleum, Construction, Fracking, Irrigation, Material Handling
  • For use with Kuriyama Hoses
Features:
  • All sizes except 1/2" and 5" comply with Mil-Spec A-A-59326 for interchangeability.
  • 5" Size complies with ASTM specs for interchangeability.
  • 1/2" x 1/2" are not specified under Mil Specs.
  • Brass alloy is specially designed for high tensile strength and rigidity.
  • Locking feature using safety clips to prevent disconnection during use on all sizes except 1/2".
Materials:
  • ASTM B584 Grade C85700 brass alloy.
  • Forged brass handles.
  • Type 304 stainless steel handle pins.
  • Type 304 stainless steel pull rings.
  • Zinc-plated carbon steel safety clips.
  • Buna-N Gaskets.
Part Number Size Weight (Lbs.)
BR-C050 1/2" x 1/2" 0.35 lbs
BR-C075 3/4" x 3/4" 0.53 lbs.
BR-C100 1" x 1" 0.81 lbs.
BR-C125 1-1/4" x 1-1/4" 1.23 lbs.
BR-C150 1-1/2" x 1-1/2" 1.32 lbs.
BR-C200 2" x 2" 1.72 lbs.
BR-C250 2-1/2" x 2-1/2" 2.42 lbs.
BR-C300 3" x 3" 3.74 lbs.
BR-C400 4" x 4" 5.51 lbs.
BR-C500 5" x 5" 7.27 lbs.
BR-C600 6" x 6" 13.77 lbs.
Kuriyama

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
