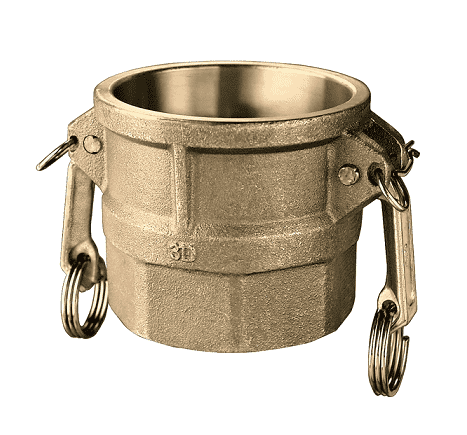

BR-D400 by Kuriyama | Quick-Acting Coupling | Part D | 4" Female Coupler x 4" Female NPT | Brass

BR-D400 by Kuriyama | Quick-Acting Coupling | Part D | 4" Female Coupler x 4" Female NPT | Brass

Save $60.02 Save $60.02
$210.07
$210.07 - $210.07
$210.07
$150.05
$150.05 - $150.05
$150.05

Kuriyama Couplings™ - Quick-Acting Couplings - Part D - Female Coupler x Female NPT - Brass

Specifications for Variant SKU: BR-D400 Kuriyama
Shape (Orientation): Straight
Cam Type: Type D
Ends Configuration: 4in Female Cam & Groove, 4in Female NPT
Material(s): Brass
Seal Material(s): Buna-N/Nitrile Rubber
Applications:
  • Agriculture, Chemicals/Petroleum, Construction, Fracking, Irrigation, Material Handling
  • For use with Kuriyama Hoses
Features:
  • All sizes except 1/2" and 5" comply with Mil-Spec A-A-59326 for interchangeability.
  • 5" Size complies with ASTM specs for interchangeability.
  • 1/2" x 1/2" are not specified under Mil Specs.
  • Brass alloy is specially designed for high tensile strength and rigidity.
  • Locking feature using safety clips to prevent disconnection during use on all sizes except 1/2".
Materials:
  • ASTM B584 Grade C85700 brass alloy.
  • Forged brass handles.
  • Type 304 stainless steel handle pins.
  • Type 304 stainless steel pull rings.
  • Zinc-plated carbon steel safety clips.
  • Buna-N Gaskets.
Part Number Size Weight (Lbs.)
BR-D050 1/2" x 1/2" 0.35 lbs
BR-D075 3/4" x 3/4" 0.51 lbs.
BR-D100 1" x 1" 0.75 lbs.
BR-D125 1-1/4" x 1-1/4" 1.12 lbs.
BR-D150 1-1/2" x 1-1/2" 1.21 lbs.
BR-D200 2" x 2" 1.43 lbs.
BR-D250 2-1/2" x 2-1/2" 1.87 lbs.
BR-D300 3" x 3" 3.13 lbs.
BR-D400 4" x 4" 5.29 lbs.
BR-D500 5" x 5" 5.62 lbs.
BR-D600 6" x 6" 10.95 lbs.
Kuriyama

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
