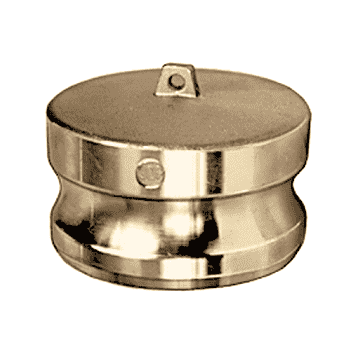

BR-DP200 by Kuriyama | Quick-Acting Coupling | Part DP | 2" Dust Plug | Brass

BR-DP200 by Kuriyama | Quick-Acting Coupling | Part DP | 2" Dust Plug | Brass

Save $11.14 Save $11.14
$38.99
$38.99 - $38.99
$38.99
$27.85
$27.85 - $27.85
$27.85

Kuriyama Couplings™ - Quick-Acting Couplings - Part DP - Dust Plug - Brass

Specifications for Variant SKU: BR-DP200 Kuriyama
Cam Type: Type DP
Ends Configuration: 2in Female Cam & Groove
Material(s): Brass
Applications:
  • Agriculture, Chemicals/Petroleum, Construction, Fracking, Irrigation, Material Handling
  • For use with Kuriyama Hoses
Features:
  • All sizes except 1/2" and 5" comply with Mil-Spec A-A-59326 for interchangeability.
  • 5" Size complies with ASTM specs for interchangeability.
  • 1/2" x 1/2" are not specified under Mil Specs.
  • Brass alloy is specially designed for high tensile strength and rigidity.
  • Locking feature using safety clips to prevent disconnection during use on all sizes except 1/2".
Materials:
  • ASTM B584 Grade C85700 brass alloy.
  • Forged brass handles.
  • Type 304 stainless steel handle pins.
  • Type 304 stainless steel pull rings.
  • Zinc-plated carbon steel safety clips.
  • Buna-N Gaskets.
Part Number Size Weight (Lbs.)
BR-DP050 1/2" 0.22 lbs
BR-DP075 3/4" 0.33 lbs.
BR-DP100 1" 0.46 lbs.
BR-DP125 1-1/4" 0.53 lbs.
BR-DP150 1-1/2" 0.99 lbs.
BR-DP200 2" 1.20 lbs.
BR-DP250 2-1/2" 1.65 lbs.
BR-DP300 3" 2.42 lbs.
BR-DP400 4" 3.74 lbs.
BR-DP500 5" 4.74 lbs.
Kuriyama

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
