C61-16-16-WHP by Kurt Hydraulics | Ultra High Pressure Non Skive | Code 61 Flange | for 1" Hose ID

C61-16-16-WHP by Kurt Hydraulics | Ultra High Pressure Non Skive | Code 61 Flange | for 1" Hose ID

Save $31.13 Save $31.13
$77.82
$77.82 - $77.82
$77.82
$46.69
$46.69 - $46.69
$46.69

by Kurt Hydraulics
C61-WHP - Code 61 Flange Rigid - Ultra High Pressure Non Skive

Kurt Fittings and Hose should only be used together.
Specifications for Variant SKU: C61-16-16-WHP Kurt
Series: WHP Series
Shape (Orientation): Straight
Ends Configuration: 1in Hose Barb, 1in Code 61 Flange

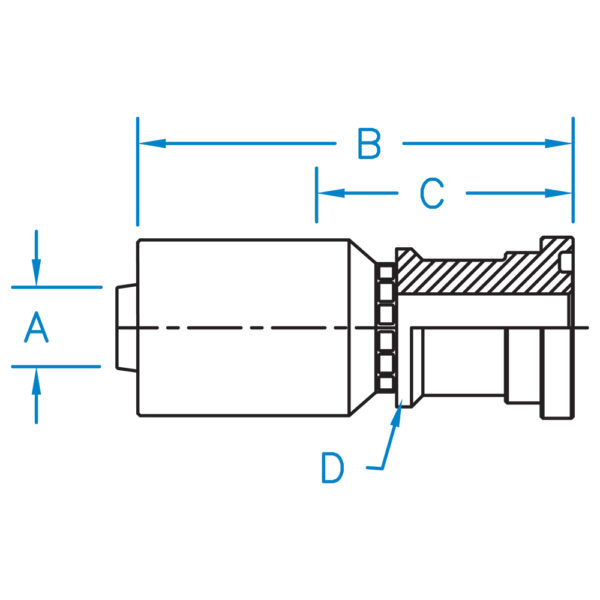

Part Number A B C D Hose ID
(In)		 Thread
C61-12-12-WHP 0.750 4.150 1.720 1-1/2R 3/4" N/A
C61-16-16-WHP 1.000 4.529 1.999 1-3/4R 1.000" N/A

Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
