C6130-20-24-W by Kurt Hydraulics | Jump Size | Code 61 Flange | 30° Elbow | for 1-1/4" Hose ID

C6130-20-24-W by Kurt Hydraulics | Jump Size | Code 61 Flange | 30° Elbow | for 1-1/4" Hose ID

Save $7.35 Save $7.35
$66.15
$66.15 - $66.15
$66.15
$58.80
$58.80 - $58.80
$58.80

by Kurt Hydraulics
C6130-W - Code 61 Flange 30 deg. Bent Tube Rigid

Kurt Fittings and Hose should only be used together.
Specifications for Variant SKU: C6130-20-24-W Kurt
Series: C6130 Series
Shape (Orientation): 30 Degree
Ends Configuration: 1-1/4in Hose Barb, 1-1/2in Code 61 Flange
Special Properties: Jump Size

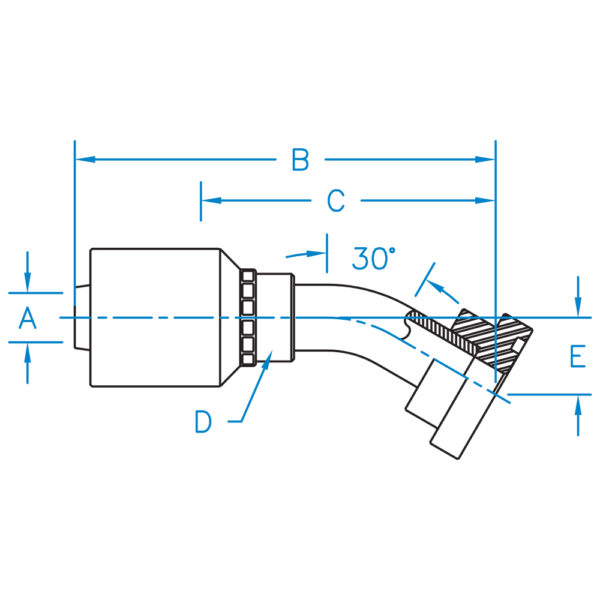

Part Number A B C D E Hose ID
(In)		 Thread
C6130-12-12-W 0.750 4.77 2.890 1.0R 0.670 3/4" N/A
C6130-12-16-W 0.750 4.680 2.890 1.0R 0.670 3/4" N/A
C6130-16-16-W 1.000 4.950 2.830 1-5/16R 0.600 1.000" N/A
C6130-16-20-W 1.000 4.950 2.832 1-5/16R 0.600 1.000" N/A
C6130-20-20-W 1.250 5.660 3.210 1-5/8R 0.720 1-1/4" N/A
C6130-20-24-W 1.250 5.710 3.260 1-5/8R 0.750 1-1/4" N/A
C6130-24-24-W 1.500 6.890 4.290 2.0R 0.820 1-1/2" N/A
C6130-32-32-W 2.000 8.340 5.090 2-1/2R 1.370 2.000" N/A

Kurt Hydraulics

Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
