C6130-24-24-JJ by Kurt Hydraulics | Ultra High Pressure Skive Style | Code 61 Flange | 30° Elbow | for 1-1/2" Hose ID

Name: C6130-24-24-JJ by Kurt Hydraulics | Ultra High Pressure Skive Style | Code 61 Flange | 30° Elbow | for 1-1/2" Hose ID
Brand: Kurt Hydraulics
SKU: C6130-24-24-JJ Kurt
Price: 91.55 USD
Availability: InStock

Save $61.03

$152.58

$152.58 - $152.58

$152.58

$91.55

$91.55 - $91.55

$91.55

by Kurt Hydraulics
C6130-JJ - Code 61 Flange 30 deg. Bent Tube Rigid - Ultra High Pressure Skive Style

Kurt Fittings and Hose should only be used together.

Specifications for Variant SKU: C6130-24-24-JJ Kurt
Series:	JJ Series
Shape (Orientation):	30 Degree
Ends Configuration:	1-1/2in Hose Barb, 1-1/2in Code 61 Flange

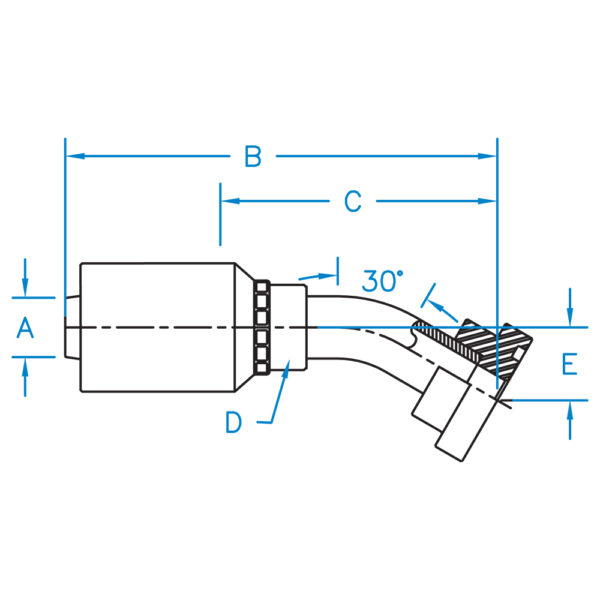

Part Number	A	B	C	D	E	Hose ID (In)	Thread
C6130-20-20-JJ	1.250	6.127	3.527	1-3/4R	0.717	1-1/4"	N/A
C6130-24-24-JJ	1.500	6.590	4.060	2-1/8R	0.980	1-1/2"	N/A
C6130-24-32-JJ	1.500	6.700	4.170	2-1/8R	1.050	1-1/2"	N/A
C6130-32-32-JJ	2.000	8.920	5.340	2-3/4R	1.330	2.000"	N/A

Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
