C6145-12-16 by Kurt Hydraulics | Jump Size | Code 61 Flange | 45° Elbow | for 3/4" Hose ID

C6145-12-16 by Kurt Hydraulics | Jump Size | Code 61 Flange | 45° Elbow | for 3/4" Hose ID

Save $26.82 Save $26.82
$67.05
$67.05 - $67.05
$67.05
$40.23
$40.23 - $40.23
$40.23

by Kurt Hydraulics
C6145 - Code 61 Flange 45 deg. Bent Tube Rigid

Kurt Fittings and Hose should only be used together.
Specifications for Variant SKU: C6145-12-16 Kurt
Series: Braided Coupling Series
Shape (Orientation): Straight
Ends Configuration: 3/4in Hose Barb, 1in Code 61 Flange
Special Properties: Jump Size

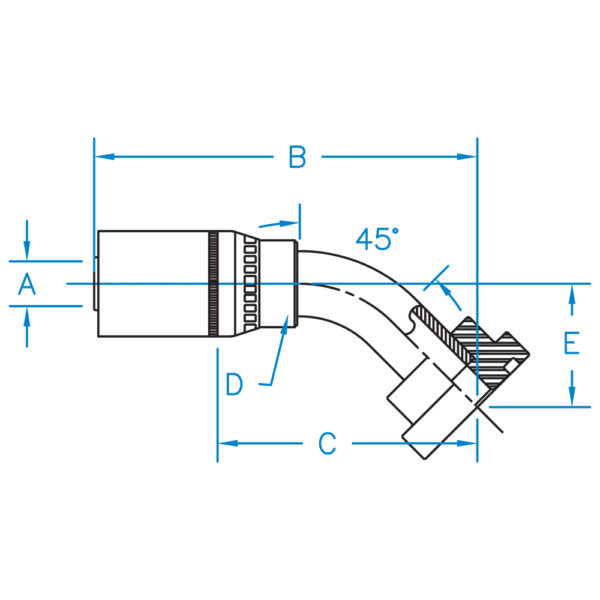

Part Number A B C D E Hose ID
(In)		 Thread
C6145-08-08 0.500 4.220 2.720 7/8 0.770 1/2" N/A
C6145-08-12 0.500 4.427 2.739 1-1/8 0.840 1/2" N/A
C6145-12-12 0.750 4.410 2.640 1-1/8 1.020 3/4" N/A
C6145-12-16 0.750 4.492 2.612 1-3/8 1.130 3/4" N/A
C6145-12-20 0.750 N/A N/A 1-3/8 N/A 3/4" N/A
C6145-16-16 1.000 4.47 2.74 1-3/8 1.130 1.000" N/A
C6145-16-20 1.000 N/A N/A 1-3/8 N/A 1.000" N/A
C6145-16-24 1.000 N/A N/A 1-5/8R N/A 1.000" N/A
C6145-20-20 1.250 N/A N/A 1-3/4 N/A 1-1/4" N/A
C6145-20-24 1.250 N/A N/A 1-3/4 N/A 1-1/4" N/A

Kurt Hydraulics

Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
