C6145-24-32-JJ by Kurt Hydraulics | Jump Size | Ultra High Pressure Skive Style | Code 61 Flange | 45° Elbow | for 1-1/2" Hose ID

Save $12.42

$111.78

$111.78 - $111.78

$111.78

$99.36

$99.36 - $99.36

$99.36

by Kurt Hydraulics
C6145-JJ - Code 61 Flange 45 deg. Bent Tube Rigid - Ultra High Pressure Skive Style

Kurt Fittings and Hose should only be used together.

Quantity

Specifications for Variant SKU: C6145-24-32-JJ Kurt
Series:	C6145 Series
Shape (Orientation):	45 Degree
Ends Configuration:	1-1/2in Hose Barb, 2in Code 61 Flange
Special Properties:	Jump Size

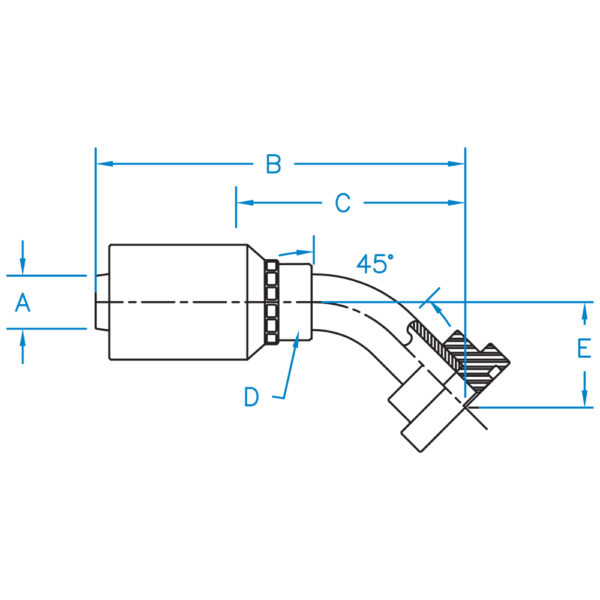

Part Number	A	B	C	D	E	Hose ID (In)	Thread
C6145-20-20-JJ	1.250	6.260	3.660	1-3/4R	1.496	1-1/4"	N/A
C6145-24-24-JJ	1.500	3.720	4.190	2-1/8R	1.580	1-1/2"	N/A
C6145-24-32-JJ	1.500	6.83	2.9	2-1/8R	1.670	1-1/2"	N/A
C6145-32-32-JJ	2.000	9.290	5.700	2-3/4R	2.210	2.000"	N/A

Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
