C6190-08-12-K2 by Kurt Hydraulic | K2 Series | 1/2" Hose Barb x 3/4" Code 61 Flange | 90° Elbow | Carbon Steel

Name: C6190-08-12-K2 by Kurt Hydraulic | K2 Series | 1/2" Hose Barb x 3/4" Code 61 Flange | 90° Elbow | Carbon Steel
Brand: Kurt Hydraulics
SKU: C6190-08-12-K2 Kurt
Price: 84.73 USD
Availability: InStock

Save $56.49

$141.22

$141.22 - $141.22

$141.22

$84.73

$84.73 - $84.73

$84.73

Kurt Hydraulics
C61 - Code 61 Flange 90° Bent Tube Rigid

Specifications for Variant SKU: C6190-08-12-K2 Kurt
Series:	K2 Series
Shape (Orientation):	90 Degree
Ends Configuration:	1/2in Hose Barb, 3/4in Code 61 Flange
Material(s):	Carbon Steel

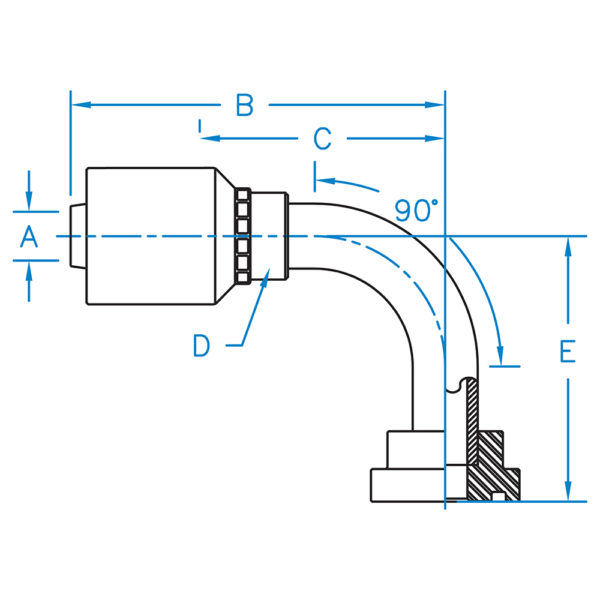

Part Number	Hose I.D. (in.)	B	C	D	E	Thread
C6190-08-08-K2	1/2"	3.14"	1.80"	7/8"	1.63"	N/A
C6190-08-12-K2	1/2"	3.48"	2.15"	1"	1.56"	N/A

Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
