C6190L-08-12-W by Kurt Hydraulics | Jump Size | Code 61 Flange | 90° Long Drop Elbow | for 1/2" Hose ID

Name: C6190L-08-12-W by Kurt Hydraulics | Jump Size | Code 61 Flange | 90° Long Drop Elbow | for 1/2" Hose ID
Brand: Kurt Hydraulics
SKU: C6190L-08-12-W Kurt
Price: 38.57 USD
Availability: InStock

Save $25.71

$64.28

$64.28 - $64.28

$64.28

$38.57

$38.57 - $38.57

$38.57

by Kurt Hydraulics
C6190L-W - Code 61 Flange 90 deg. Long Drop Bent Tube Rigid

Kurt Fittings and Hose should only be used together.

Specifications for Variant SKU: C6190L-08-12-W Kurt
Series:	W Series
Shape (Orientation):	90 Degree
Ends Configuration:	1/2in Hose Barb, 3/4in Code 61 Flange
Special Properties:	Jump Size

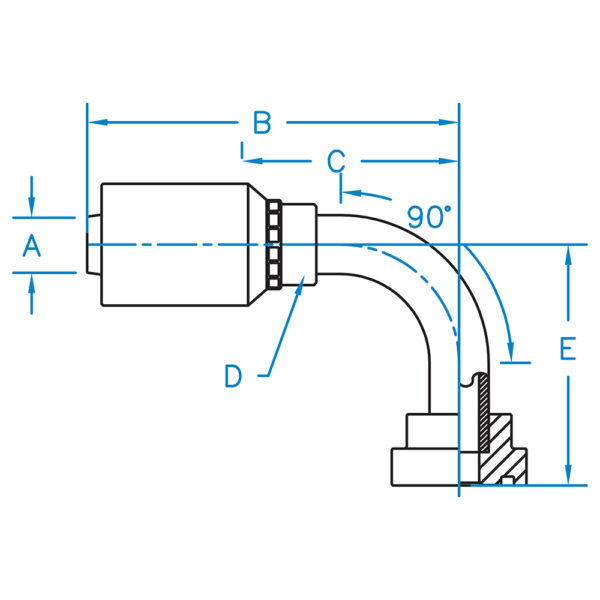

Part Number	A	B	C	D	E	Hose ID (In)	Thread
C6190L-08-12-W	0.500	3.872	2.532	1.0R	3.75	1/2"	N/A
C6190L-12-12-W	0.750	4.436	2.557	1.0R	3.75	3/4"	N/A
C6190L-16-16-W	N/A	N/A	N/A	N/A	N/A	N/A	N/A
C6190L-16-20-W	N/A	N/A	N/A	N/A	N/A	N/A	N/A

Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
