C62-24-32-JJ by Kurt Hydraulics | Jump Size | Ultra High Pressure Skive Style | Code 62 Flange | for 1-1/2" Hose ID

Name: C62-24-32-JJ by Kurt Hydraulics | Jump Size | Ultra High Pressure Skive Style | Code 62 Flange | for 1-1/2" Hose ID
Brand: Kurt Hydraulics
SKU: C62-24-32-JJ Kurt
Price: 86.19 USD
Availability: InStock

Save $10.77

$96.96

$96.96 - $96.96

$96.96

$86.19

$86.19 - $86.19

$86.19

by Kurt Hydraulics
C62-JJ - Code 62 Flange Rigid - Ultra High Pressure Skive Style

Kurt Fittings and Hose should only be used together.

Quantity

Specifications for Variant SKU: C62-24-32-JJ Kurt
Series:	C62 Series
Shape (Orientation):	Straight
Ends Configuration:	1-1/2in Hose Barb, 2in Code 62 Flange
Special Properties:	Jump Size

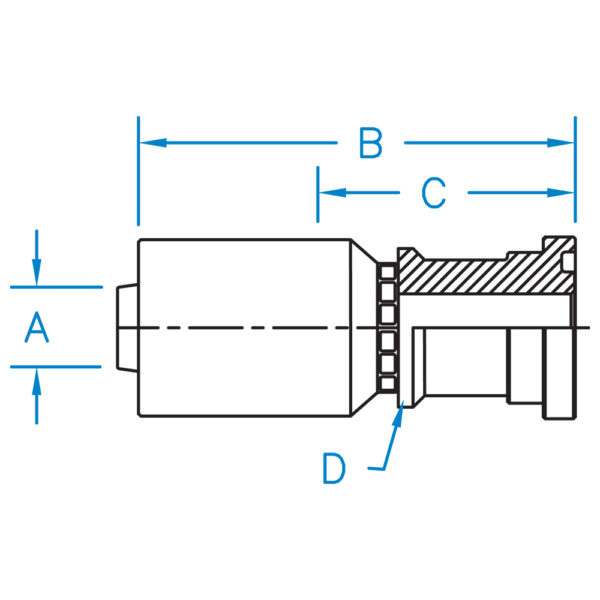

Part Number	A	B	C	D	Hose ID (In)	Thread
C62-20-20-JJ	1.250	5.471	2.871	2-1/8R	1-1/4"	N/A
C62-24-24-JJ	1.500	5.725	3.015	2-1/2R	1-1/2"	N/A
C62-24-32-JJ	1.500	5.998	3.288	3-1/8R	1-1/2"	N/A
C62-32-32-JJ	2.000	7.185	3.415	3-1/8R	2.000"	N/A

Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
