C6245-12-12-WHP by Kurt Hydraulics | Ultra High Pressure Non Skive | Code 62 Flange | 45° Elbow | for 3/4" Hose ID

Name: C6245-12-12-WHP by Kurt Hydraulics | Ultra High Pressure Non Skive | Code 62 Flange | 45° Elbow | for 3/4" Hose ID
Brand: Kurt Hydraulics
SKU: C6245-12-12-WHP Kurt
Price: 47.72 USD
Availability: InStock

Save $31.81

$79.53

$79.53 - $79.53

$79.53

$47.72

$47.72 - $47.72

$47.72

by Kurt Hydraulics
C6245-WHP - Code 62 Flange 45 Degree Bent Tube Rigid - Ultra High Pressure Non Skive

Kurt Fittings and Hose should only be used together.

Specifications for Variant SKU: C6245-12-12-WHP Kurt
Series:	WHP Series
Shape (Orientation):	45 Degree
Ends Configuration:	3/4in Hose Barb, 3/4in Code 62 Flange

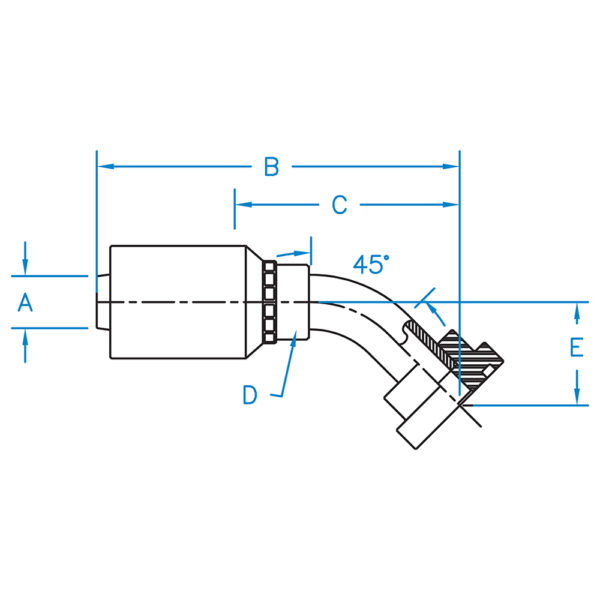

Part Number	A	B	C	D	E	Hose ID (In)	Thread
C6245-12-12-WHP	0.750	5.270	2.840	1-3/16R	0.930	3/4"	N/A
C6245-16-16-WHP	1.000	5.902	3.372	1-7/16R	1.250	1.000"	N/A

Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
