C6290-12-12-W by Kurt Hydraulics | Code 62 Flange | 90° Elbow | for 3/4" Hose ID

C6290-12-12-W by Kurt Hydraulics | Code 62 Flange | 90° Elbow | for 3/4" Hose ID

Save $26.37 Save $26.37
$65.92
$65.92 - $65.92
$65.92
$39.55
$39.55 - $39.55
$39.55

by Kurt Hydraulics
C6290-W - Code 62 Flange 90 deg. Bent Tube Rigid

Kurt Fittings and Hose should only be used together.
Specifications for Variant SKU: C6290-12-12-W Kurt
Series: W Series
Shape (Orientation): 90 Degree
Ends Configuration: 3/4in Hose Barb, 3/4in Code 62 Flange

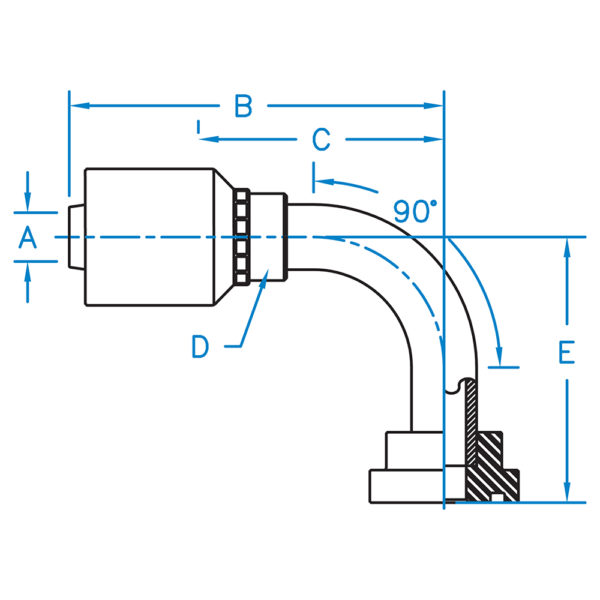

Part Number A B C D E Hose ID
(In)		 Thread
C6290-12-12-W 0.750 4.820 2.935 1.0R 2.506 3/4" N/A
C6290-12-16-W 0.750 4.820 2.938 1.0R 2.620 3/4" N/A
C6290-16-16-W 1.000 5.220 3.110 1-5/16R 2.620 1.000" N/A
C6290-16-20-W 1.000 5.220 2.690 1-5/16R 2.690 1.000" N/A
C6290-20-16-W 1.250 N/A N/A 1-5/8R N/A 1-1/4" N/A
C6290-20-20-W 1.250 6.230 3.780 1-5/8R 3.110 1-1/4" N/A
C6290-20-24-W 1.250 6.230 3.780 1-5/8R 3.330 1-1/4" N/A
C6290-24-24-W 1.500 6.740 4.140 2.0R 3.830 1-1/2" N/A
C6290-32-32-W 2.000 8.31 5.01 2-1/2R 5.56 2.000" N/A

Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
