CAT-24-24-JJ by Kurt Hydraulics | Ultra High Pressure Skive Style | CAT Flange | for 1-1/2" Hose ID

Name: CAT-24-24-JJ by Kurt Hydraulics | Ultra High Pressure Skive Style | CAT Flange | for 1-1/2" Hose ID
Brand: Kurt Hydraulics
SKU: CAT-24-24-JJ Kurt
Price: 69.69 USD
Availability: InStock

Save $8.71

$78.40

$78.40 - $78.40

$78.40

$69.69

$69.69 - $69.69

$69.69

by Kurt Hydraulics
CAT-JJ - Cat Flange Straight Rigid - Ultra High Pressure Skive Style

Kurt Fittings and Hose should only be used together.

Quantity

Specifications for Variant SKU: CAT-24-24-JJ Kurt
Series:	CAT Series
Shape (Orientation):	Straight
Ends Configuration:	1-1/2in Hose Barb, 1-1/2in Cat Flange

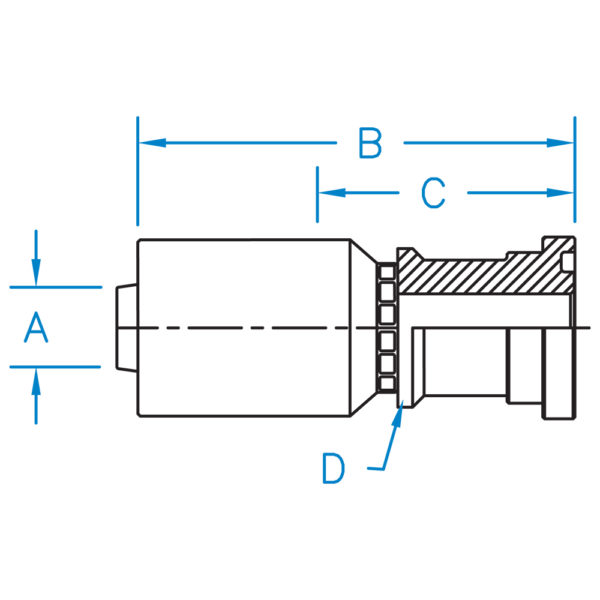

Part Number	A	B	C	D	Hose ID (In)	Thread
CAT-20-20-JJ	1.250	5.360	3.030	2-1/8R	1-1/4"	N/A
CAT-20-24-JJ	1.250	6.016	3.415	2-1/2R	1-1/4"	N/A
CAT-24-24-JJ	1.500	6.103	3.393	2-1/2R	1-1/2"	N/A
CAT-32-32-JJ	N/A	N/A	N/A	N/A	N/A	N/A

Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
