CAT45-12-12-WHP by Kurt Hydraulics | Ultra High Pressure Non Skive | CAT Flange | 45° Elbow | for 3/4" Hose ID

Name: CAT45-12-12-WHP by Kurt Hydraulics | Ultra High Pressure Non Skive | CAT Flange | 45° Elbow | for 3/4" Hose ID
Brand: Kurt Hydraulics
SKU: CAT45-12-12-WHP Kurt
Price: 39.41 USD
Availability: InStock

Save $26.27

$65.68

$65.68 - $65.68

$65.68

$39.41

$39.41 - $39.41

$39.41

by Kurt Hydraulics
CAT-WHP - CAT Flange 22 deg., 30 deg., 45 deg. Bent Tube Rigid - Ultra High Pressure Non Skive

Kurt Fittings and Hose should only be used together.

Specifications for Variant SKU: CAT45-12-12-WHP Kurt
Series:	WHP Series
Shape (Orientation):	45 Degree
Ends Configuration:	3/4in Hose Barb, 3/4in CAT Flange

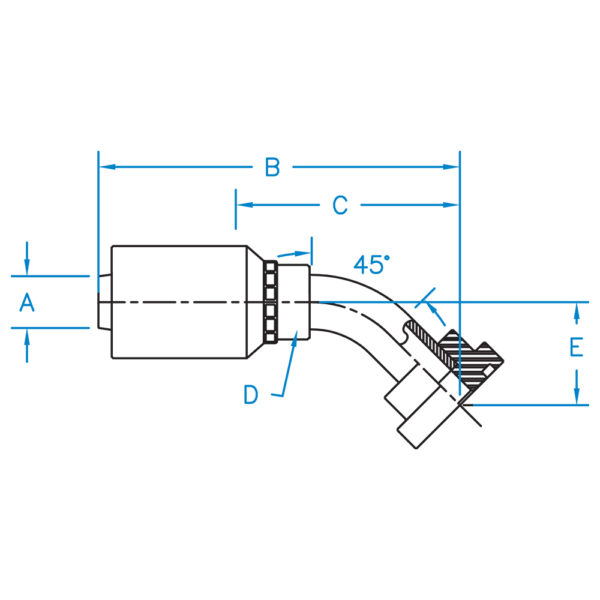

Part Number	Degree	A	B	C	D	E	Hose ID (In)	Thread
CAT22-12-12-WHP	22 deg.	0.750	5.571	3.141	1-3/16R	.622	3/4"	N/A
CAT30-12-12-WHP	30 deg.	0.750	5.847	3.417	1-3/16R	.842	3/4"	N/A
CAT45-12-12-WHP	45 deg.	0.750	4.729	2.94	1-3/16R	1.36	3/4"	N/A
CAT45-16-16-WHP	45 deg.	1.000	5.719	3.189	1-7/16R	1.430	1.000"	N/A

Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
