CAT45-20-24-W by Kurt Hydraulics | Jump Size | CAT Flange | 45° Elbow | for 1-1/4" Hose ID

Name: CAT45-20-24-W by Kurt Hydraulics | Jump Size | CAT Flange | 45° Elbow | for 1-1/4" Hose ID
Brand: Kurt Hydraulics
SKU: CAT45-20-24-W Kurt
Price: 90.44 USD
Availability: InStock

Save $11.31

$101.75

$101.75 - $101.75

$101.75

$90.44

$90.44 - $90.44

$90.44

by Kurt Hydraulics
CAT45-W - Cat Flange 45 deg. Bent Tube Rigid

Kurt Fittings and Hose should only be used together.

Quantity

Specifications for Variant SKU: CAT45-20-24-W Kurt
Series:	CAT45 Series
Shape (Orientation):	45 Degree
Ends Configuration:	1-1/4in Hose Barb, 1-1/2in CAT Flange
Special Properties:	Jump Size

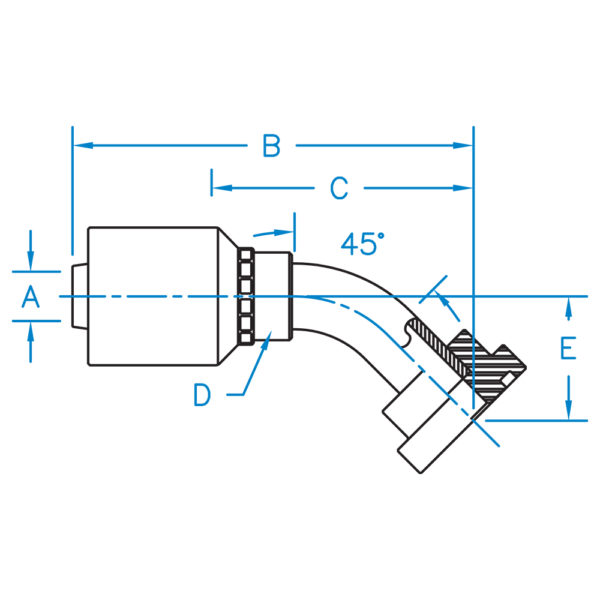

Part Number	A	B	C	D	E	Hose ID (In)	Thread
CAT45-12-12-W	0.750	4.710	2.940	1.0R	1.360	3/4"	N/A
CAT45-12-16-W	0.750	4.800	3.010	1.0R	1.030	3/4"	N/A
CAT45-16-16-W	1.000	4.870	3.080	1-5/16R	1.430	1.000"	N/A
CAT45-16-20-W	1.000	5.140	3.020	1-5/16R	1.150	1.000"	N/A
CAT45-20-20-W	1.250	6.290	3.195	1-5/8R	1.460	1-1/4"	N/A
CAT45-20-24-W	1.250	6.430	3.980	1-5/8R	1.610	1-1/4"	N/A
CAT45-24-24-W	1.500	7.390	4.790	2.0R	1.750	1-1/2"	N/A
CAT45-32-32-W	2.000	N/A	N/A	N/A	N/A	2.000"	N/A

Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
