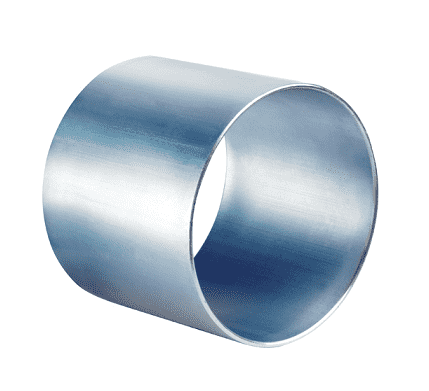

CRS-AL30313 by Kuriyama | Kuri-Krimp Crimp Sleeve | Hose ID 3" | Sleeve ID 3.81" | Wall Thickness 0.079" | Aluminum

Save $5.72

$20.01

$20.01 - $20.01

$20.01

$14.29

$14.29 - $14.29

$14.29

Kuriyama Couplings™ - Kuri-Krimp(trademark) Crimp Sleeves - Aluminum

Specifications for Variant SKU: CRS-AL30313 Kuriyama
Shape (Orientation):	No Orientation
Material(s):	Aluminum

Applications:
The Aluminum Steel Crimp Sleeves are available for industrial hoses with ID sizes of 1", 1 1/2", 2", 2 1/2", 3", 4", 6", 8", 10" and 12". For use with Kuriyama Hoses
Features:
N/A
Materials:
Aluminum

Part Number	Hose ID (in.)	Sleeve ID (in.)	Wall Thickness (in.)	Length (in.)	Weight (Lbs.)
CRS-AL20209	2"	2.56"	0.079"	2.79"	0.18 lbs.
CRS-AL20210	2"	2.63"	0.079"	2.79"	0.18 lbs.
CRS-AL20211	2"	2.69"	0.079"	2.79"	0.19 lbs.
CRS-AL30310	3"	3.63"	0.079"	3.94"	0.35 lbs.
CRS-AL30312	3"	3.75"	0.079"	3.94"	0.36 lbs.
CRS-AL30313	3"	3.81"	0.079"	3.94"	0.37 lbs.
CRS-AL30400	3"	4.00"	0.079"	3.94"	0.39 lbs.
CRS-AL40411	4"	4.69"	0.098"	4.19"	0.60 lbs.
CRS-AL40412	4"	4.75"	0.098"	4.19"	0.61 lbs.
CRS-AL40413	4"	4.81"	0.098"	4.19"	0.62 lbs.
CRS-AL40500	4"	5.00"	0.098"	4.19"	0.64 lbs.

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
