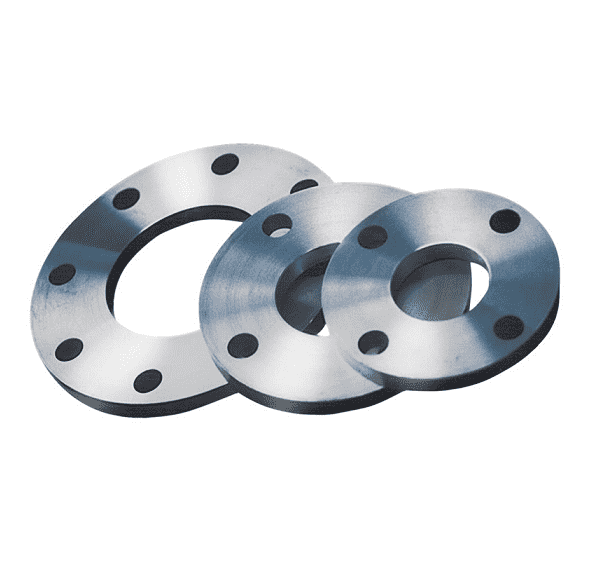

CSPF1200 by Kuriyama | Forged Plate Flange 150# | Size: 12" | OD: 19" | Bore: 12.880" | Thickness: 1" | Carbon Steel

Save $1.98

$199.17

$199.17 - $199.17

$199.17

$197.19

$197.19 - $197.19

$197.19

Kuriyama Couplings™ - Carbon Steel Forged Plate Style Flanges - Carbon Steel

Quantity

Specifications for Variant SKU: CSPF1200 Kuriyama
Shape (Orientation):	Straight
Ends Configuration:	12in 150# Flange, 12in 150# Flange, Some Ends Match
Material(s):	Carbon Steel

Applications:
Chemicals, Petroleum, Construction, Material Handling For use with Kuriyama Hoses
Features:
Certifications: ANSI B16.56 & ASTM A-105
Materials:
Carbon Steel
Dimensions:

Part Number	Size (in.)	OD A (in.)	Bore B	Circle C (in.)	Thickness (in.)	Number Bolt Holes	Diameter Bolt Holes (in.)	Weight (Lbs.)
CSPF0075	3/4"	3-7/8"	1.100	2-3/4"	1/2"	4	5/8"	1.36 lbs.
CSPF0150	1-1/2"	5"	1.950	3-7/8"	5/8"	4	5/8"	2.70 lbs.
CSPF0200	2"	6"	2.440	4-3/4"	5/8"	4	3/4"	4.10 lbs.
CSPF0250	2-1/2"	7"	2.940	5-1/2"	5/8"	4	3/4"	5.35 lbs.
CSPF0300	3"	7-1/2"	3.570	6"	5/8"	4	3/4"	5.80 lbs.
CSPF0400	4"	9"	4.570	7-1/2"	5/8"	8	3/4"	8.00 lbs.
CSPF0500	5"	10"	5.660	8-1/2"	3/4"	8	7/8"	10.37 lbs.
CSPF0600	6"	11"	6.720	9-1/2"	3/4"	8	7/8"	11.76 lbs.
CSPF0800	8"	13-1/2"	8.720	11-3/4"	1"	8	7/8"	22.48 lbs.
CSPF1000	10"	16"	10.880	14-1/4"	1"	12	1"	26.83 lbs.
CSPF1200	12"	19"	12.880	17"	1"	12	1"	42.30 lbs.

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
