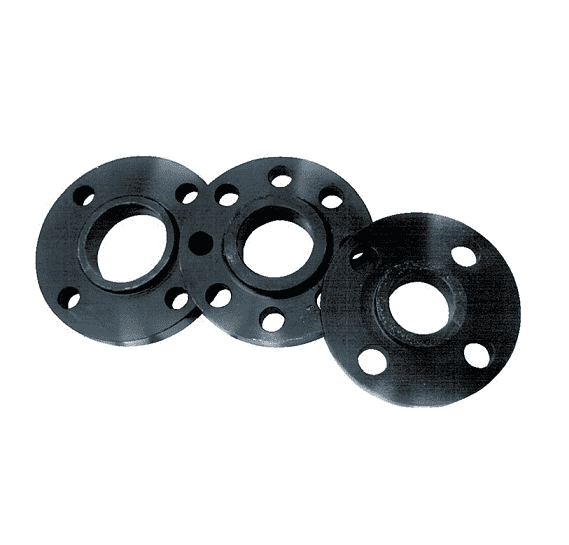

CSRF1501000 by Kuriyama | Forged Raised Face Slip-On Flange 150# | Size: 10" | OD: 16" | Bore: 10.880" | Thickness: 1" | Carbon Steel

Save $70.70

$247.44

$247.44 - $247.44

$247.44

$176.74

$176.74 - $176.74

$176.74

Kuriyama Couplings™ - Carbon Steel Forged Raised Face Slip-On Flange 150#

Specifications for Variant SKU: CSRF1501000 Kuriyama
Shape (Orientation):	Straight
Ends Configuration:	10in 150# Flange, 10in 150# Flange, Some Ends Match
Material(s):	Carbon Steel

Applications:
Chemicals/Petroleum, Construction, Material Handling For use with Kuriyama Hoses
Features:
Certifications: ANSI B16.56 & ASTM A-105
Materials:
Carbon Steel
Dimensions:

Part Number	Size (in.)	OD A (in.)	Bore B	Circle C (in.)	Thickness (in.)	Number Bolt Holes	Diameter Bolt Holes (in.)	Weight (Lbs.)
CSRF1500125	1-1/4"	4-5/8"	1.700	3-1/2"	7/8"	4	5/8"	3.09 lbs.
CSRF1500150	1-1/2"	5"	1.950	3-7/8"	7/8"	4	5/8"	3.60 lbs.
CSRF1500200	2"	6"	2.440	4-3/4"	1"	4	3/4"	5.07 lbs.
CSRF1500300	3"	7-1/2"	3.570	6"	1-1/4"	4	3/4"	7.94 lbs.
CSRF1500400	4"	9"	4.570	7-1/2"	1-3/8"	8	3/4"	13.01 lbs.
CSRF1500600	6"	11"	6.720	9-1/2"	1-1/2"	8	7/8"	18.74 lbs.
CSRF1500800	8"	13-1/2"	8.720	11-3/4"	1-3/4"	8	7/8"	29.98 lbs.
CSRF1501000	10"	16"	10.880	14-1/4"	2"	12	1"	42.99 lbs.
CSRF1501400	14"	21"	14.140	18-3/4"	2-1/4"	12	1-1/8"	90.39 lbs.

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
