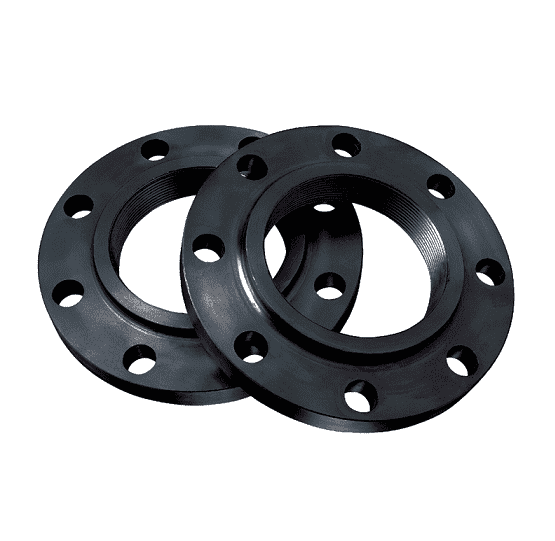

CSRFTHD1500300 by Kuriyama | Forged Raised Face Threaded Flange 150# | Size: 3" | OD: 7-1/2" | Bore: 3.570" | Thickness: 1-1/4" | Carbon Steel

Save $1.07

$38.31

$38.31 - $38.31

$38.31

$37.24

$37.24 - $37.24

$37.24

Kuriyama Couplings™ - Carbon Steel Forged Raised Face Threaded Flange 150#

Quantity

Specifications for Variant SKU: CSRFTHD1500300 Kuriyama
Shape (Orientation):	Straight
Ends Configuration:	3in 150# Flange, 3in 150# Flange, Some Ends Match
Material(s):	Carbon Steel

Applications:
Chemicals/Petroleum, Construction, Material Handling For use with Kuriyama Hoses
Features:
Certifications: ANSI B16.56 & ASTM A-105
Materials:
Carbon Steel
Dimensions:

Part Number	Size(in.)	OD A(in.)	Bore B	Circle C(in.)	Thickness(in.)	NumberBolt Holes	Diameter BoltHoles (in.)	Weight (Lbs.)
CSRFTHD1500150	1-1/2"	5"	1.950	3-7/8"	7/8"	4	5/8"	3.60 lbs.
CSRFTHD1500200	2"	6"	2.440	4-3/4"	1"	4	3/4"	5.07 lbs.
CSRFTHD1500250	2-1/2"	7"	2.940	5-1/2"	1-1/8"	4	3/4"	7.05 lbs.
CSRFTHD1500300	3"	7-1/2"	3.570	6"	1-1/4"	4	3/4"	7.94 lbs.
CSRFTHD1500400	4"	9"	4.570	7-1/2"	1-3/8"	8	3/4"	13.01 lbs.
CSRFTHD1500600	6"	11"	6.720	9-1/2"	1-1/2"	8	7/8"	18.74 lbs.
CSRFTHD1500800	8"	13-1/2"	8.720	11-3/4"	1-3/4"	8	7/8"	29.98 lbs.
CSRFTHD1501000	10"	16"	10.880	14-1/4"	2"	12	1"	42.99 lbs.
CSRFTHD1501200	12"	19"	12.880	17"	2-1/8"	12	1"	63.93 lbs.

D

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
