20544196 Insta-Grip™ by ContiTech | HT 300 Push-On Air / Multipurpose Hose | Continental | 0.25" (1/4") ID | 300 PSI | Blue | 500ft

20544196 Insta-Grip™ by ContiTech | HT 300 Push-On Air / Multipurpose Hose | Continental | 0.25" (1/4") ID | 300 PSI | Blue | 500ft

Minimum Order Quantity: 4 Reels

$1,047.11 - $1,047.11
$1,047.11
$1,060.20
$1,060.20 - $1,060.20
$1,060.20

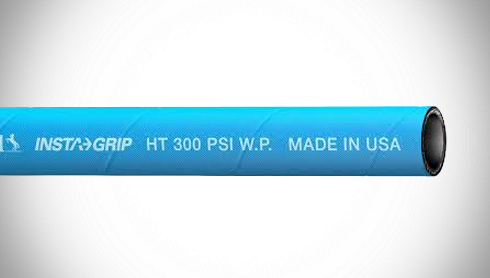

Continental ContiTech Insta-Grip™ HT 300 Push-on Air & Multipurpose Hose

For lubricating and fuel oils, air and water. Not recommended for applications involving impulse movements or air brake applications. For use with push-on fittings at working pressures up to 300 psi.

Package Quantity: 500 FT

Specifications for Variant SKU: 20544196 ContiTech | 500 |
Brand: Insta-Grip HT 300
Series: Insta-Grip HT 300
Hose Color(s): Blue
Internal Diameter: 0.25in
Outer Diameter: 0.51in
Tubing Construction: Chlorinated Polyethylene
Cover Construction: Chlorinated Polyethylene

SPECIFICATIONS

Application: Lubricating and fuel oils, air and water. SAE Rating: N/A
Other Ratings: N/A Tube: Black CPE rubber, ARPM Class B (Medium Oil Resistance)
Reinforcement: One synthetic textile braid Cover: Blue CPE rubber, ARPM Class B (Medium Oil Reisistance)
Temperature Range: Petroleum-based hydraulic fluids: -40°F to 300°F (-40°C to 150°C)
Water and air: -40°F to 190°F (-40°C to 88°C)		 Fittings: N/A
Branding: Continental ContiTech Insta-Grip™ HT 3/4" 300 psi WP Made in USA
Blue
Part Number		 Inside
Diameter		 Nominal Outside
Diameter		 Max. Working
Pressure		 Bend
Radius		 Length Weight Blue
Order Code
in. mm in. mm PSI MPa in. mm lb./ft. kg/m
20544196 1/4" 6.4mm 0.51" 12.8mm 300 PSI 2.1 MPa 2.5" 64mm 500ft 0.09 lbs./ft. 0.13 kg/m 53540500800400
20544197 3/8" 9.5mm 0.67" 17.0mm 300 PSI 2.1 MPa 3.0" 76mm 500ft 0.14 lbs./ft. 0.21 kg/m 53540501200400
20544198 1/2" 12.7mm 0.76" 19.3mm 300 PSI 2.1 MPa 5.0" 127mm 500ft 0.16 lbs./ft. 0.24 kg/m 53540501600400
20544199 5/8" 15.9mm 0.93" 23.6mm 300 PSI 2.1 MPa 6.0" 152mm 500ft 0.20 lbs./ft. 0.30 kg/m 53540502000400
20571923 3/4" 19.0mm 1.04" 26.5mm 300 PSI 2.1 MPa 7.0" 178mm 500ft 0.25 lbs./ft. 0.37 kg/m 53540502400400

Hose design ratio (burst pressure) 4:1.

Continental ContiTech

Continental ContiTech

ContiTech specializes in the engineering and distribution of innovative, reliable and high-performance industrial hose products for a vast array of industrial, commercial and residential applications. They are used in machine and plant engineering, mining, agriculture, the automotive industry, and other important sectors of the future.
