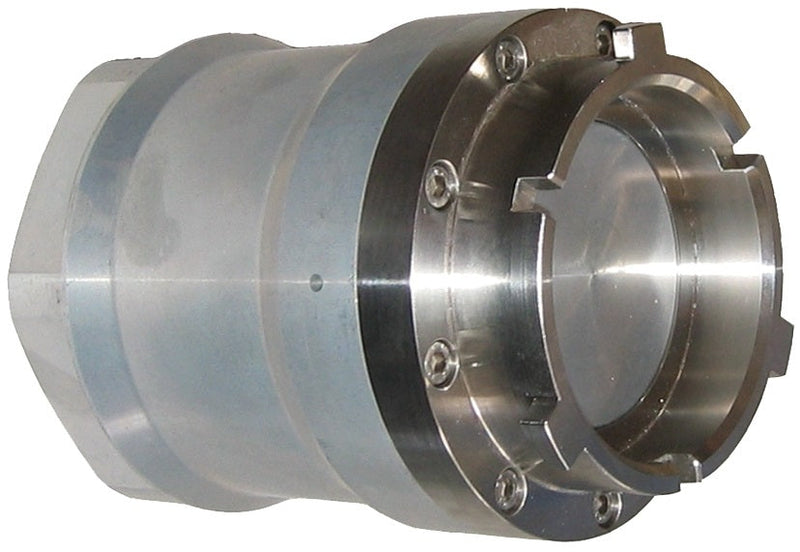

DAA250AL by Dixon Valve | MannTek Dry Disconnect Aviation Adapter | Tank Unit | 2-1/1" Female NPT | ISO 45 Body Size | Aluminum

DAA250AL by Dixon Valve | MannTek Dry Disconnect Aviation Adapter | Tank Unit | 2-1/1" Female NPT | ISO 45 Body Size | Aluminum

Save $90.03 Save $90.03
$810.24
$810.24 - $810.24
$810.24
$720.21
$720.21 - $720.21
$720.21

Dixon Valve
MannTek Dry Disconnect Aviation Adapter | Hose Unit | Female NPT x ISO 45

Dry aviation couplings are designed for use in aviation refueling systems.
Specifications for Variant SKU: DAA250AL Dixon
Brand: MannTek
Shape (Orientation): Straight
Ends Configuration: 2-1/2in Male Manntek Dry Disconnect, 2-1/2in Female NPT
Material(s): Aluminum
Seal Material(s): Viton/FKM
Features:
  • Composite (Polyeten PE-HD 300) cap provides good protection in harsh environments.
  • Gunmetal coupling ring minimizes the risk of seizure.
  • PTFE bearings between the piston shaft and the piston guide eliminate the risk of seizure.
  • Conical valve seat eliminates the risk of piston blowout when extreme pressure is used.
Materials:
  • Body: high-strength aluminum.
  • Coupling ring: gunmetal.
  • Bayonet flange and inner parts: stainless steel, aluminum.
  • All wetted parts: aluminum and stainless steel.
Specifications:
  • Working pressure: 150 PSI at ambient temperature 70°F (21°C).
  • Manufactured to accept the international standard 2-1/2" point bayonet, hose end refueling nozzles according to: ISO45 / MS24484 / STANAG 3105 / British Aerospace Spec. 2C14.
Safety Note:
  • Not configured for under-wing refueling.
  • Use with a composite, Polyeten PE-HD 300 cap, DADC250, for protection against corrosion.
Part Number Female NPT Size Body Size
DAA250AL 2-1/2" ISO 45
DAA300AL 3" ISO 45
