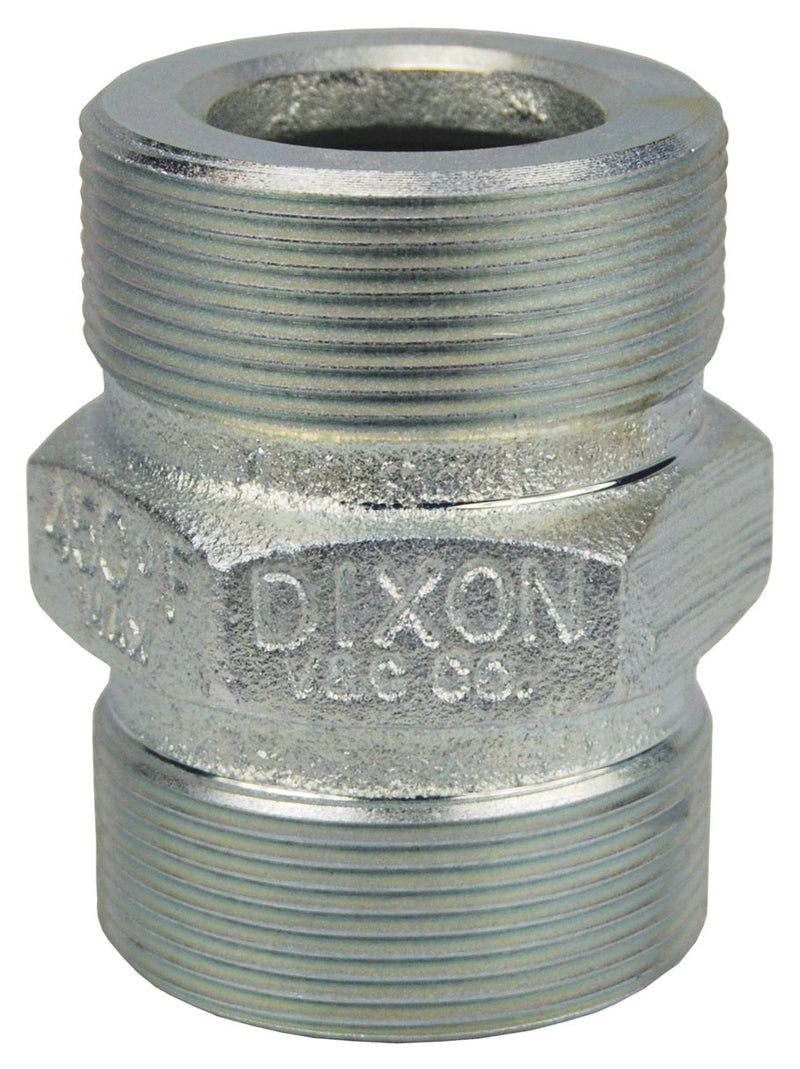

DB23 by Dixon Valve | Boss® Washer Seal | Double Spud | 1-1/4" and 1-1/2" Size | Wing Nut Thread | Plated Iron

$30.56

Dixon Valve
Boss® | Washer Seal Double Spuds

Boss couplings are all-purpose hose couplings, universally recommended for steam hose connections. They are also widely used for air, water, fluid petroleum, chemicals and liquid petroleum gas up to 1" ID.

Boss couplings can be applied to many types of rubber, synthetic, plastic, metallic or semi-metallic hose.


Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: DB23 Dixon
Brand: Boss
Shape (Orientation): Straight

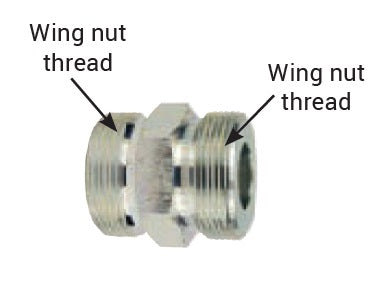

Ends Configuration: 1-1/4in GJ Wing Nut Thread, 1-1/2in GJ Wing Nut Thread
Material(s): Iron
Features:
  • Easy to seal.
  • A Klingersil® C-4401 washer is inserted between the stem and spud.
  • The spud part of the coupling serves as one half of the connection and is usually fixed to the equipment. The stem part that is clamped to the hose is the other half. The two halves are connected or disconnected by rotating the wing nut on the spud. A Leakproof seal forms by rotating the wing nut and hammering it tight.
Use:
  • Boss couplings supply a convenient threaded fitting to connect two lengths of hose, or a single length to a male or female threaded outlet.
  • Use with Boss Washer Seal fittings.
Specifications:
  • Recommended for steam service up to 450°F (232°C).
Safety Notes:
  • Worn-out hose couplings can be dangerous. They should be checked regularly and replace when necessary. Each coupling user should review applications and add safety devices where indicated.
  • Note. Pressurized steam is an extremely dangerous commodity. Only hose, fittings, clamps and accessory items that have been approved for steam service should ever be used! Never use an unapproved item for steam service. Always follow the manufacturer's product recommendations for pressurized steam handling.
Plated Steel
Part Number
Plated Iron
Part Number
Size
DB3 - 1/2"
DB13 - 3/4"
DB13 - 1"
- DB23 1-1/4"
- DB23 1-1/2"
- DB28 2"
- DB38 3"
