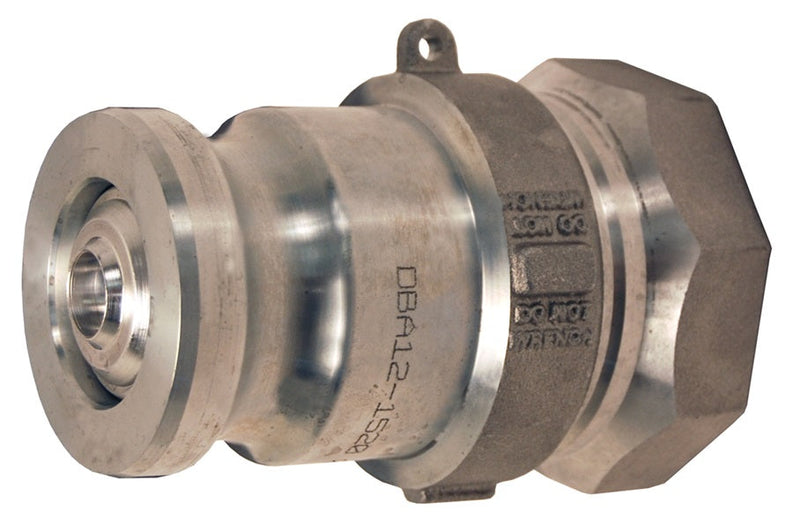

DBA11-1520 Bayloc® by Dixon Valve | Dry Disconnect | Reducer (Jump Size ) | 2" Female NPT x 2" Adapter | Nitrile Rubber Seal | Aluminum

Save $115.89

$289.73

$289.73 - $289.73

$289.73

$173.84

$173.84 - $173.84

$173.84

Dixon Valve
Bayloc® Dry Disconnect | Jump Size Adapter x Female NPT

Dry disconnects help prevent spillage from normal or accidental disconnects. A spring loaded sealing device is designed to "snap" closed should the valve become disconnected with the poppet open, significantly limiting liquid loss.

For use in transfer of hazardous fluids.

Specifications for Variant SKU: DBA11-1520 Dixon
Brand:	Bayloc
Shape (Orientation):	Straight
Cam Type:	Type A
Ends Configuration:	2in Male Cam & Groove, 2in Female NPT
Material(s):	Aluminum
Seal Material(s):	Buna-N/Nitrile Rubber

Compatibility & Interchange Data:
Compatible with most other brands of cam and groove style dry disconnects. Fully interchangeable with Kamvalok (OPW trademark) style fittings.
Use:
Use with DBC or D2C style couplers. Use with standard cam and groove dust caps sized one size larger than the dry disconnect size
Features:
Cam & Groove Style. Two-piece adapter design for easy rebuilding of adapters. Spring loaded sealing device snaps closed should valve become disconnected with the poppet open.

Aluminum Part Number	Female NPT	Coupler Size	Seal Material	Maximum PSI at 70°F (21°C)
DBA11-1520	2"	2"	Nitrile Rubber	150 PSI
DBA12-1520	2"	2"	FKM	150 PSI
