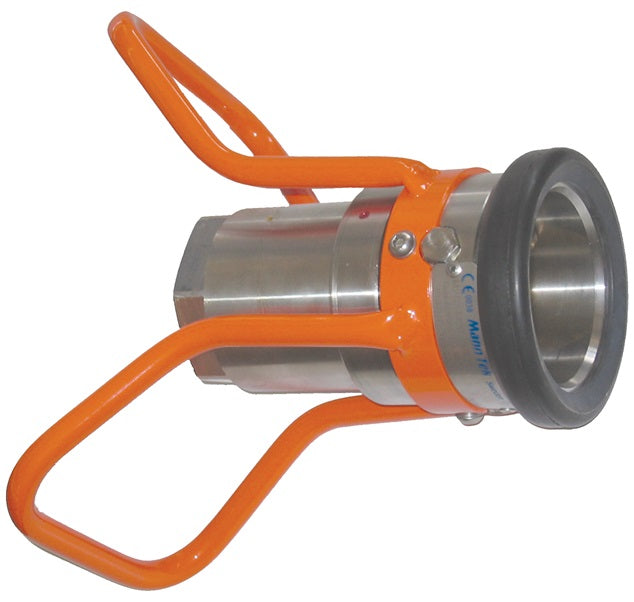

DGC100SS by Dixon Valve | MannTek Dry Disconnect Gas Coupling | 1" Female NPT | 56mm Body Size | 316 Stainless Steel

DGC100SS by Dixon Valve | MannTek Dry Disconnect Gas Coupling | 1" Female NPT | 56mm Body Size | 316 Stainless Steel

Save $196.57 Save $196.57
$1,769.16
$1,769.16 - $1,769.16
$1,769.16
$1,572.59
$1,572.59 - $1,572.59
$1,572.59

Dixon Valve
MannTek Dry Disconnect Gas Coupling | Female NPT

Dry gas couplings are designed for safe loading and discharge of bobtails or intermediate bulk delivery trucks and transfer to and from railcars.

The primary application is in the handling of LPG - Propane and Butane.
Specifications for Variant SKU: DGC100SS Dixon
Brand: MannTek
Shape (Orientation): Straight
Ends Configuration: 56mm Female Manntek Dry Disconnect, 1in Female NPT
Material(s): 316 Stainless Steel
Seal Material(s): Viton/FKM
Compatibility & Interchange Data:
  • Compatible with existing dry disconnect couplings.
Features:
  • Quick and easy to connect and can be connected to a tank unit with pressures up to 225 PSI.
  • For higher pressure, couplings can easily be equipped with a pressure relief valve that dissipates trapped fluid pressure into the hose coupler without spillage.
  • Reliable- easy to use, easy to maintain and saves time.
  • Minimizes the risk of cold burns, spillage and product loss, and health risks.
  • Keeps the environment free of hazardous vapors and liquids.
Construction:
  • Stainless steel and brass / gunmetal (produced to U.S. government bronze specification G).
  • Low temperature FKM (FPM) seals.
Specifications:
  • Working pressure: 360 PSI at ambient temperature 70°F (21°C)
  • Can be coupled to a tank unit with pressures up to 225 PSI at ambient temperature 70°F (21°C), if pressure is higher, equip couplings with pressure relief valves.
Part Number Female NPT Body Size
DGC100SS 1" 56mm
DGC200SS 2" 71mm
DGC300SS 3" 119mm
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
