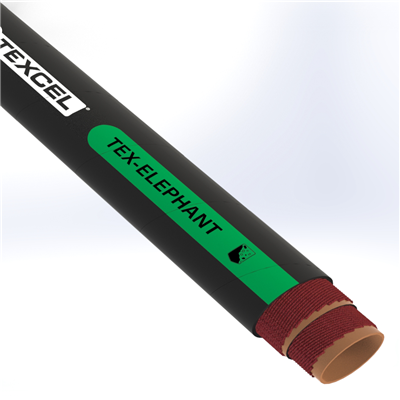

ELEP-16.0 by Texcel | TEX-ELEPHANT Series | Elephant Trunk Hose | 16" Hose ID | 50 PSI | Black

ELEP-16.0 by Texcel | TEX-ELEPHANT Series | Elephant Trunk Hose | 16" Hose ID | 50 PSI | Black

$114.81 - $2,391.75
$114.81
$102.05
$102.05 - $2,126.00
$102.05

Texcel
TEX-COMMODITY Series | Elephant Trunk Hose

Purchased Lengths of hose will be multiple pieces unless Product Option or Title specifies Exact Length.
Specifications for Variant SKU: ELEP-16.0-25N Texcel | 25 |
Series: TEX-ELEPHANT Series
Hose Color(s): Black
Internal Diameter: 16in
Outer Diameter: 16.52in
Tubing Construction: Natural Rubber
Cover Construction: SBR/Nitrile Blend
Technical Data:
Description: Premium-quality hose made with 1/8" tube gauge for high abrasion and cut resistance. Ideal for cement and abrasives gravity flow, and for use in sleeve applications. Tube: Tan, pure gum
Cover: Black, NR/SBR compound Reinforcement: High tensile synthetic plies
Safety Factor: 3:1 Temperature: -20°F to +180°F
Branding: TEXCEL™ TEX-ELEPHANT - ELEPHANT TRUNK HOSE 50 PSI W.P. Features: Heavy-duty construction with abrasion and cut resistance
Designed for cement and abrasive gravity flow
Suitable for sleeve applications
Part Number Hose ID Hose OD Tube Gauge Working Pressure (psi) Lbs./Ft.
ELEP-8.0 8" 8-33/64" 1/8" 50 psi 3.84 lbs
ELEP-10.0 10" 10-33/64" 1/8" 50 psi 5.50 lbs
ELEP-12.0 12" 12-33/64" 1/8" 50 psi 6.00 lbs
ELEP-14.0 14" 14-33/64" 1/8" 50 psi 7.00 lbs
ELEP-16.0 16" 16-33/64" 1/8" 50 psi 8.15 lbs
