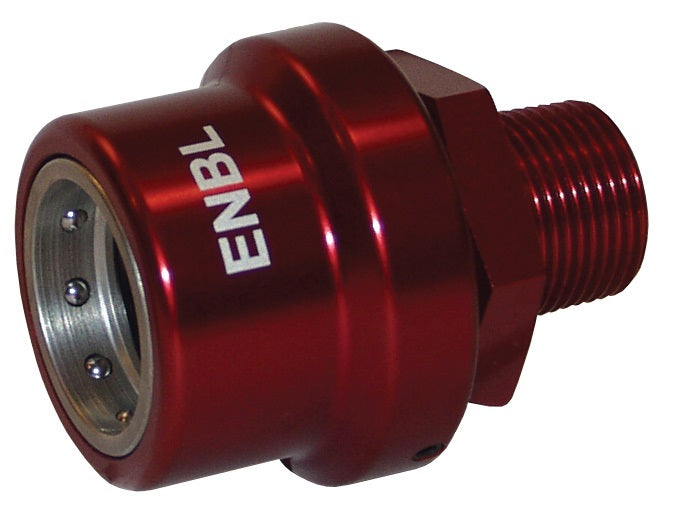

ENBL by Dixon Valve | FloMAX Standard-Series | Engine Oil Nozzle | with Ball Lock | 3/4" Male NPT | Red | Anodized Aluminum

ENBL by Dixon Valve | FloMAX Standard-Series | Engine Oil Nozzle | with Ball Lock | 3/4" Male NPT | Red | Anodized Aluminum

Save $262.19 Save $262.19
$655.47
$655.47 - $655.47
$655.47
$393.28
$393.28 - $393.28
$393.28

Dixon Valve
FloMAX Standard-Series | Engine Oil Nozzle

Fully compatible and interchangeable with industry standards.
Specifications for Variant SKU: ENBL Dixon
Brand: FloMAX
Series: ENBL Series
Shape (Orientation): Straight
Ends Configuration: 3/4in Male NPT
Material(s): Anodized Aluminum, Stainless Steel
Features:
  • Bright red.
  • Universally fits both R-series and Standard series crankcase receivers.
  • Smooth actuation.
  • Larger diameter pullback lanyard.
  • Standard series connectors consist of four color-coded mating connectors.
  • Easily recognizable labeling.
  • Fully compatible and interchangeable with industry standards.
Construction:
  • All-metal construction with stainless steel wear components.
  • anodized aircraft grade aluminum non-wear components.
  • Incorporates 10 locking balls with a 40% deeper engagement.
  • Resistant to clogging with a greater ease of cleaning.
Engine Oil Nozzles
Part Number Description Thread Size Cross Over Part Numbers
Caterpillar® Wiggins FastFill
ENBL Engine Oil Nozzle with Ball Lock 3/4" Male NPT 9S9273 OS2 N100
ENBL-P Engine Oil Nozzle with Ball Lock & Plug 3/4" Male NPT - OSP2 N100P
ENBL-PLUG Engine Oil Nozzle Plug - 9S9274 OP-12 P100
Engine Oil Receivers
Part Number Description Thread Size Cross Over Part Numbers
Caterpillar® Wiggins FastFill
ERS Engine Oil Receiver 3/4" Male NPT 9S9271 ON2 R100
ERS-C Engine Oil Receiver with Cap 3/4" Male NPT - ONC2A R100C
ERS-CAP Engine Oil Receiver Cap - 9S9272 O3B12P C100
ERJ Engine Oil Receiver with JIC Bulkhead Base 3/4" Male JIC - ON6 -
ERJ-C Engine Oil Receiver with JIC Bulkhead Base & Cap 3/4" Male JIC - - -

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
