F-BFPX-08-12 by Kurt Hydraulics | British Flat Face Seat Female | Swivel | for 1/2" Hose ID

Name: F-BFPX-08-12 by Kurt Hydraulics | British Flat Face Seat Female | Swivel | for 1/2" Hose ID
Brand: Kurt Hydraulics
SKU: F-BFPX-08-12 Kurt
Price: 27.36 USD
Availability: InStock

Save $3.42

$30.78

$30.78 - $30.78

$30.78

$27.36

$27.36 - $27.36

$27.36

by Kurt Hydraulics
F-BFPX - British Flat Face Seat Female Swivel

Kurt Fittings and Hose should only be used together.

Quantity

Specifications for Variant SKU: F-BFPX-08-12 Kurt
Series:	BFPX Series
Shape (Orientation):	Straight
Special Properties:	Swivel

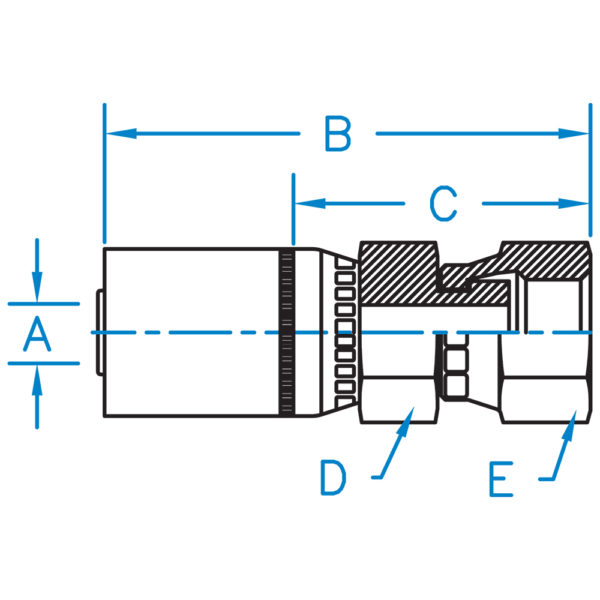

Part Number	A	B	C	D	E	Hose ID (In)	Thread
F-BFPX-06-06	0.375	2.807	1.307	3/4	7/8	1/4"	3/8-19
F-BFPX-06-08	0.375	2.916	1.416	7/8	1.000	3/8"	1/2-14
F-BFPX-08-08	0.500	2.996	1.494	7/8	1.000	1/2"	1/2-14
F-BFPX-08-12	0.500	N/A	N/A	N/A	1-1/4	1/2"	3/4-14

Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
