F-BSPX-06-06-K2 by Kurt Hydraulic | K2 Series | 3/8" Hose Barb x 3/8" Female BSPP | Carbon Steel

F-BSPX-06-06-K2 by Kurt Hydraulic | K2 Series | 3/8" Hose Barb x 3/8" Female BSPP | Carbon Steel

Save $11.31 Save $11.31
$28.27
$28.27 - $28.27
$28.27
$16.96
$16.96 - $16.96
$16.96

Kurt Hydraulics
Female British Pipe Straight
Specifications for Variant SKU: F-BSPX-06-06-K2 Kurt
Series: K2 Series
Shape (Orientation): Straight
Ends Configuration: 3/8in Hose Barb, 3/8in Female BSPP
Material(s): Carbon Steel

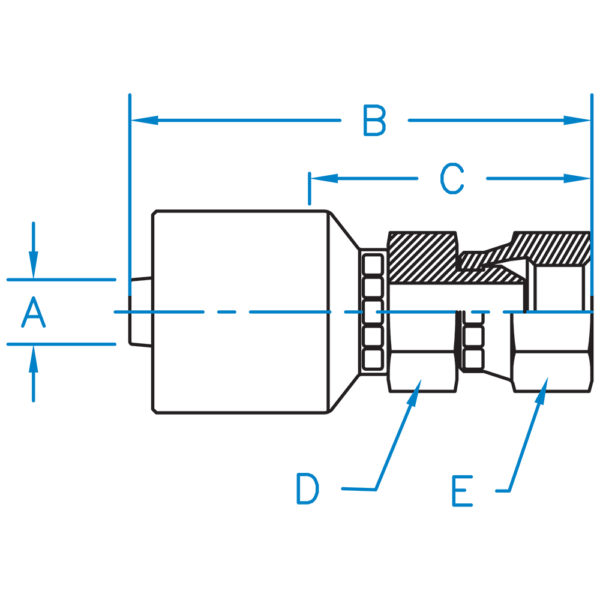

Part Number Hose I.D. (in.) B C D E Thread
F-BSPX-04-02-K2 1/4" 2.03" 0.97" 9/16" 9/16" 1/8 – 28
F-BSPX-04-04-K2 1/4" 2.06" 0.98" 9/16" 3/4" 1/4 – 19
F-BSPX-04-06-K2 1/4" 2.16" 1.10" 5/8" 7/8" 3/8 – 19
F-BSPX-06-04-K2 3/8" 2.54" 1.17" 11/16" 3/4" 1/4 – 19
F-BSPX-06-06-K2 3/8" 2.33" 1.10" 3/4" 7/8" 3/8 – 19
F-BSPX-06-08-K2 3/8" 2.65" 1.28" 3/4" 1" 1/2 – 14
F-BSPX-08-06-K2 1/2" 2.68" 1.34" 7/8" 7/8" 3/8 – 19
F-BSPX-08-08-K2 1/2" 2.66" 1.32" 7/8" 1" 1/2 – 14
F-BSPX-08-10-K2 1/2" 2.94" 1.60" 7/8" 1-1/8" 5/8 – 14
Kurt Hydraulics

Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
