F-DH04-10-18-K2 by Kurt Hydraulic | K2 Series | 1/4" Hose Barb x M18X1.5 Female Din Heavy 24° Seat w/ O-Ring | Carbon Steel

F-DH04-10-18-K2 by Kurt Hydraulic | K2 Series | 1/4" Hose Barb x M18X1.5 Female Din Heavy 24° Seat w/ O-Ring | Carbon Steel

Save $22.16 Save $22.16
$55.40
$55.40 - $55.40
$55.40
$33.24
$33.24 - $33.24
$33.24

Kurt Hydraulics
Din Heavy 24º Seat Female Swivel With O-Ring
Specifications for Variant SKU: F-DH04-10-18-K2 Kurt
Series: K2 Series
Shape (Orientation): Straight
Ends Configuration: 1/4in Hose Barb, S10 Female DIN
Material(s): Carbon Steel

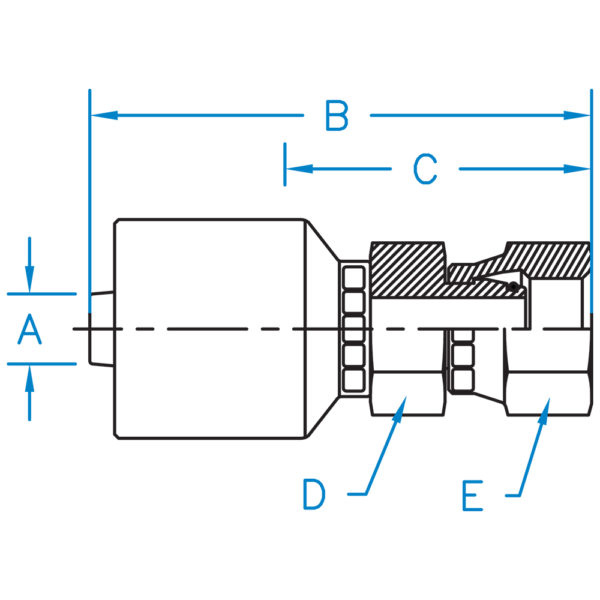

Part Number Hose I.D. (in.) B C D E Thread
F-DH04-06-14-K2 1/4" 11/16" 11/16" M14 X 1.5
F-DH04-08-16-K2 1/4" 2.07" 1.01" 9/16" 3/4" M16 X 1.5
F-DH04-10-18-K2 1/4" 2.08" 1.02" 5/8" 7/8" M18 X 1.5
F-DH06-08-16-K2 3/8" 2.60" 1.23" 11/16" 3/4" M16 X 1.5
F-DH06-10-18-K2 3/8" 2.52" 1.15" 11/16" 7/8" M18 X 1.5
F-DH06-12-20-K2 3/8" 2.51" 1.14" 11/16" 15/16" M20 X 1.5
F-DH06-14-22-K2 3/8" 2.65" 1.28" 3/4" 1-1/16" M22 X 1.5
F-DH08-12-20-K2 1/2" 2.78" 1.44" 7/8" 15/16" M20 X 1.5
F-DH08-14-22-K2 1/2" 2.69" 1.34" 7/8" 1-1/16" M22 X 1.5
F-DH08-16-24-K2 1/2" 2.63" 1.29" 7/8" 1-3/16" M24 X 1.5
Kurt Hydraulics

Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
