F-DH4506-1422-K2 by Kurt Hydraulic | K2 Series | 3/8" Hose Barb x M22X1.5 Female Din Heavy Universal Seat Swivel w/ O-Ring | 45° Elbow | Carbon Steel

F-DH4506-1422-K2 by Kurt Hydraulic | K2 Series | 3/8" Hose Barb x M22X1.5 Female Din Heavy Universal Seat Swivel w/ O-Ring | 45° Elbow | Carbon Steel

Save $38.43 Save $38.43
$96.08
$96.08 - $96.08
$96.08
$57.65
$57.65 - $57.65
$57.65

Kurt Hydraulics
Din Heavy Universal Seat 45° Tube Female Swivel With O-Ring
Specifications for Variant SKU: F-DH4506-1422-K2 Kurt
Series: K2 Series
Shape (Orientation): 45 Degree
Ends Configuration: 3/8in Hose Barb, S14 Female DIN
Material(s): Carbon Steel

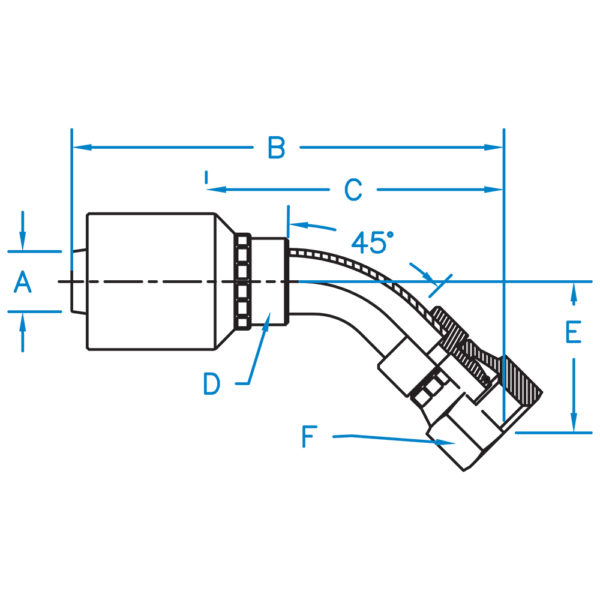

Part Number Hose I.D. (in.) B C D E F Thread
F-DH4504-0614-K2 1/4" 5/8" 11/16" M14 X 1.5
F-DH4504-0816-K2 1/4" 3.39" 2.33" 5/8" 0.89" 3/4" M16 X 1.5
F-DH4504-1018-K2 1/4" 3.38" 2.32" 5/8" 0.92" 7/8" M18 X 1.5
F-DH4506-0816-K2 3/8" 3.72" 2.35" 11/16" 0.89" 3/4" M16 X 1.5
F-DH4506-1018-K2 3/8" 3.71" 2.34" 11/16" 0.92" 7/8" M18 X 1.5
F-DH4506-1220-K2 3/8" 4.20" 2.82" 3/4" 1.16" 15/16" M20 X 1.5
F-DH4506-1422-K2 3/8" 3.85" 2.48" 11/16" 1.02" 1-1/16" M22 X 1.5
F-DH4508-1220-K2 1/2" 3.85" 2.51" 7/8" 1.20" 15/16" M20 X 1.5
F-DH4508-1422-K2 1/2" 3.87" 2.53" 3/4" 1.02" 1-1/16" M22 X 1.5
F-DH4508-1624-K2 1/2" 4.32" 2.98" 7/8" 1.26" 1-3/16" M24 X 1.5
Kurt Hydraulics

Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
