F-DINHX-04-16 by Kurt Hydraulics | Female DIN Heavy Universal Seat | Swivel | for 1/4" Hose ID

F-DINHX-04-16 by Kurt Hydraulics | Female DIN Heavy Universal Seat | Swivel | for 1/4" Hose ID

Save $11.71 Save $11.71
$29.27
$29.27 - $29.27
$29.27
$17.56
$17.56 - $17.56
$17.56

by Kurt Hydraulics
F-DINHX - Din Heavy Universal Seat Female Swivel

Kurt Fittings and Hose should only be used together.
Specifications for Variant SKU: F-DINHX-04-16 Kurt
Series: Braided Coupling Series
Shape (Orientation): Straight
Ends Configuration: 1/4in Hose Barb, S16 Female DIN
Special Properties: Swivel

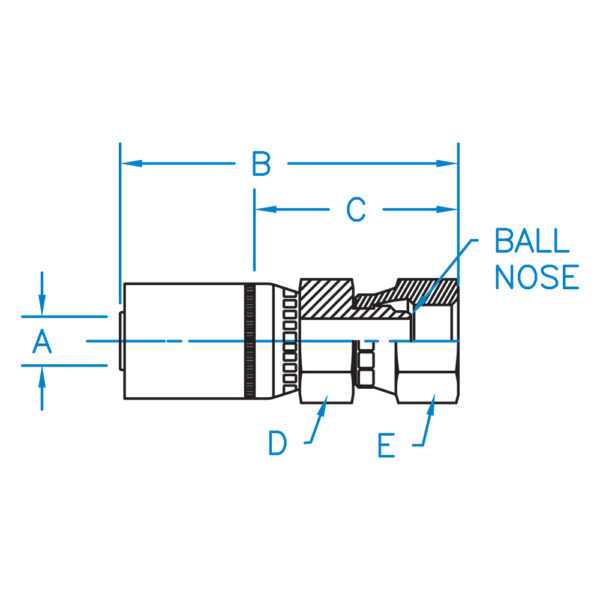

Part Number A B C D E Hose ID
(In)		 Thread
F-DINHX-04-16 0.250 N/A N/A N/A 7/8 1/4" M16 X 1.5
F-DINHX-04-18 0.250 2.481 1.226 5/8 15/16 1/4" M18 X 1.5
F-DINHX-06-16 0.375 N/A N/A N/A 7/8 3/8" M16 X 1.5
F-DINHX-06-20 0.375 N/A N/A N/A 15/16 3/8" M20 X 1.5
F-DINHX-06-22 0.375 2.772 1.272 3/4 1-1/16 3/8" M22 X 1.5
F-DINHX-08-20 0.500 N/A N/A N/A 15/16 1/2" M20 X 1.5
F-DINHX-08-24 0.500 2.842 1.340 7/8 1-3/16 1/2" M24 X 1.5
F-DINHX-10-30 0.625 3.335 1.835 1-1/8 1-7/16 5/8" M30 X 2.0
F-DINHX-12-30 N/A N/A N/A N/A N/A N/A N/A
F-DINHX-12-36 0.750 3.433 1.840 1-5/16 1.3/4 3/4" M36 X 2.0
F-DINHX-16-42 1.000 3.670 1.936 1-1/2 2.000 1.000" M42 X 2.0
