F-DINHX45-04-18 by Kurt Hydraulics | Female DIN Heavy Universal Seat | 45° Elbow | Swivel | for 1/4" Hose ID

F-DINHX45-04-18 by Kurt Hydraulics | Female DIN Heavy Universal Seat | 45° Elbow | Swivel | for 1/4" Hose ID

Save $9.47 Save $9.47
$23.68
$23.68 - $23.68
$23.68
$14.21
$14.21 - $14.21
$14.21

by Kurt Hydraulics
F-DINHX45 - Din Heavy Universal Seat 45 deg. Bent Tube Female Swivel

Kurt Fittings and Hose should only be used together.
Specifications for Variant SKU: F-DINHX45-04-18 Kurt
Series: Braided Coupling Series
Shape (Orientation): 45 Degree
Ends Configuration: 1/4in Hose Barb, S18 Female DIN
Special Properties: Swivel

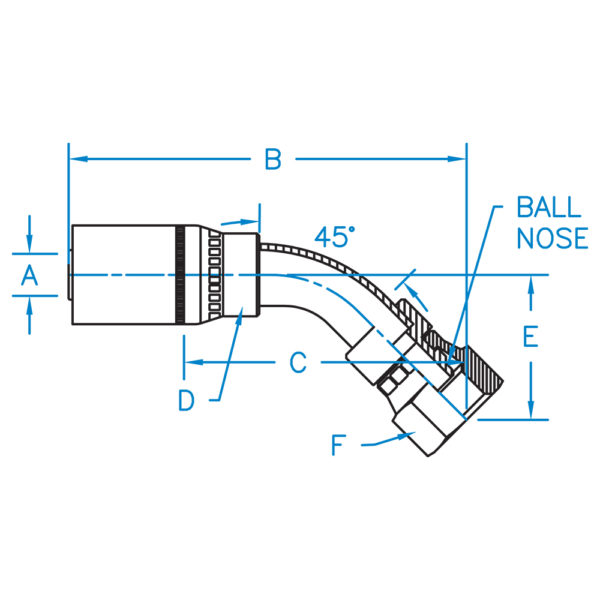

Part Number A B C D E F Hose ID
(In)		 Thread
F-DINHX45-04-16 0.250 N/A N/A N/A N/A 7/8 1/4" M16 X 1.5
F-DINHX45-04-18 0.250 3.256 2.001 5/8 1.106 15/16 1/4" M18 X 1.5
F-DINHX45-06-20 0.375 N/A N/A N/A N/A 15/16 3/8" M20 X 1.5
F-DINHX45-06-22 0.375 3.684 2.184 3/4 1.255 1-1/16 3/8" M22 X 1.5
F-DINHX45-08-24 0.500 3.852 2.164 7/8 1.224 1-3/16 1/2" M24 X 1.5
F-DINHX45-10-30 0.625 4.412 2.532 1-1/8 1.556 1-7/16 5/8" M30 X 2.0
F-DINHX45-12-36 0.750 5.105 3.225 1-3/8 1.368 1-3/4 3/4" M36 X 2.0
F-DINHX45-16-42 1.000 2.550 3.270 1.3/8 1.343 2.000 1.000" M42 X 2.0

Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
