F-DINHX90-06-20 by Kurt Hydraulics | Female DIN Heavy Universal Seat | 90 Degree Tube | Swivel | for 3/8" Hose ID

F-DINHX90-06-20 by Kurt Hydraulics | Female DIN Heavy Universal Seat | 90 Degree Tube | Swivel | for 3/8" Hose ID

Save $2.75 Save $2.75
$24.78
$24.78 - $24.78
$24.78
$22.03
$22.03 - $22.03
$22.03
by Kurt Hydraulics
F-DINHX90 - Din Heavy Universal Seat 90 deg. Bent Tube Female Swivel
Kurt Fittings and Hose should only be used together.
Specifications for Variant SKU: F-DINHX90-06-20 Kurt
Shape (Orientation): 90 Degree
Ends Configuration: 3/8in Hose Barb, S20 Female DIN
Special Properties: Swivel

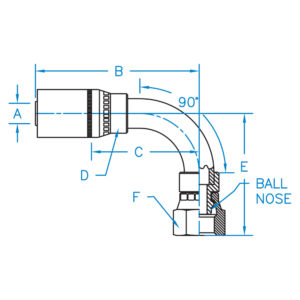

Part Number A B C D E F Hose ID
(In)		 Thread
F-DINHX90-04-16 0.250 N/A N/A N/A N/A 7/8 1/4" M16 X 1.5
F-DINHX90-04-18 0.250 2.442 1.187 5/8 1.857 15/16 1/4" M18 X 1.5
F-DINHX90-06-20 0.375 N/A N/A N/A N/A 15/16 3/8" M20 X 1.5
F-DINHX90-06-22 0.375 2.827 1.327 3/4 2.058 1-1/16 3/8" M22 X 1.5
F-DINHX90-08-24 0.500 2.995 1.307 7/8 2.018 1-3/16 1/2" M24 X 1.5
F-DINHX90-10-30 0.625 3.73 2.23 1-1/8 2.47 1-7/16 5/8" M30 X 2.0
F-DINHX90-12-36 0.750 4.78 3.19 1-3/8 3.118 1-3/4 3/4" M36 X 2.0
F-DINHX90-16-42 1.000 2.076 2.366 1-3/8 2.312 2.000 1.000" M36 X 2.0


Kurt Hydraulics

Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
