F-DINLX-06-18 by Kurt Hydraulics | Female DIN Light Universal Seat | Swivel | for 3/8" Hose ID

Name: F-DINLX-06-18 by Kurt Hydraulics | Female DIN Light Universal Seat | Swivel | for 3/8" Hose ID
Brand: Kurt Hydraulics
SKU: F-DINLX-06-18 Kurt
Price: 9.21 USD
Availability: InStock

Save $6.14

$15.35

$15.35 - $15.35

$15.35

$9.21

$9.21 - $9.21

$9.21

by Kurt Hydraulics
F-DINLX - Din Light Universal Seat Female Swivel

Kurt Fittings and Hose should only be used together.

Specifications for Variant SKU: F-DINLX-06-18 Kurt
Series:	Braided Coupling Series
Shape (Orientation):	Straight
Ends Configuration:	3/8in Hose Barb, L18 Female DIN
Special Properties:	Swivel

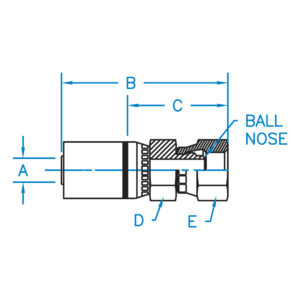

Part Number	A	B	C	D	E	Hose ID (In)	Thread
F-DINLX-04-12	0.250	N/A	N/A	N/A	N/A	1/4"	M12 X 1.5
F-DINLX-04-14	0.250	2.418	1.163	9/16	18MM	1/4"	M14 X 1.5
F-DINLX-04-16	0.250	2.467	1.209	5/8	7/8	1/4"	M16 X 1.5
F-DINLX-06-16	N/A	N/A	N/A	N/A	N/A	N/A	N/A
F-DINLX-06-18	0.375	2.734	1.235	11/16	15/16	3/8"	M18 X 1.5
F-DINLX-08-22	0.500	2.850	1.350	7/8	1-1/16	1/2"	M22 X 1.5
F-DINLX-10-26	0.625	3.108	1.608	1-1/8	1-1/4	5/8"	M26 X 1.5
F-DINLX-12-30	0.750	3.425	1.694	1-1/8	1-7/16	3/4"	M30 X 2.0
F-DINLX-16-36	1.000	3.590	1.856	1-3/8	1-3/4	1"	M36 X 2.0

Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
