F-DINLX45-16-36 by Kurt Hydraulics | Female DIN Light Universal Seat | 45° Elbow | Swivel | for 1" Hose ID

F-DINLX45-16-36 by Kurt Hydraulics | Female DIN Light Universal Seat | 45° Elbow | Swivel | for 1" Hose ID

Save $22.32 Save $22.32
$55.80
$55.80 - $55.80
$55.80
$33.48
$33.48 - $33.48
$33.48

by Kurt Hydraulics
F-DINLX45 - Din Light Universal Seat 45 deg. Bent Tube Female Swivel

Kurt Fittings and Hose should only be used together.
Specifications for Variant SKU: F-DINLX45-16-36 Kurt
Series: Braided Coupling Series
Shape (Orientation): 45 Degree
Ends Configuration: 1in Hose Barb, L36 Female DIN
Special Properties: Swivel

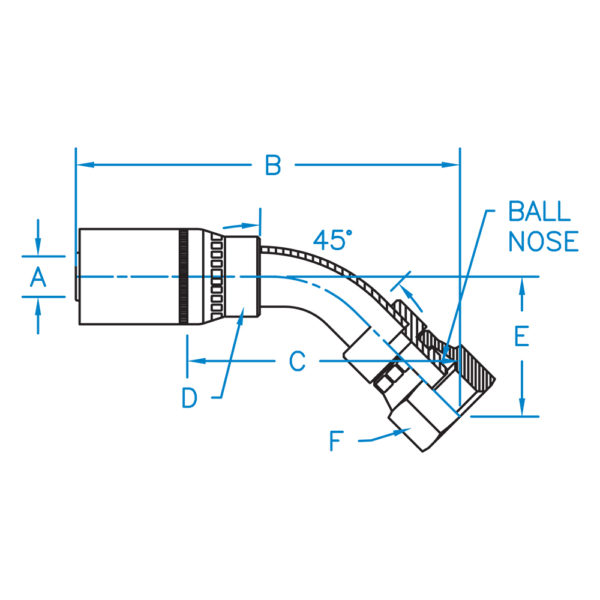

Part Number A B C D E F Hose ID
(In)		 Thread
F-DINLX45-04-14 0.250 N/A N/A N/A N/A 3/4 0.250" M14 X 1.5
F-DINLX45-04-16 0.250 3.156 1.901 5/8 0.888 7/8 1/4" M16 X 1.5
F-DINLX45-06-16 0.375 N/A N/A N/A N/A 3/4 3/8" M16 X 1.5
F-DINLX45-06-18 0.375 3.528 2.028 3/4 1.057 15/16 3/8" M18 X 1.5
F-DINLX45-08-22 0.500 3.852 2.164 7/8 1.224 1-1/16 1/2" M22 X 1.5
F-DINLX45-10-26 0.625 3.99 2.49 1-1/8 1.404 1-1/4 5/8" M26 X 1.5
F-DINLX45-12-30 0.750 5.052 3.172 1-1/8 1.841 1-7/16 3/4" M30 X 2.0
F-DINLX45-16-36 1.000 5.646 3.366 1-3/8 1.439 1-3/4 1.000" M36 X 2.0

Kurt Hydraulics

Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
