F-DINLX90-10-26 by Kurt Hydraulics | Female DIN Light Universal Seat | 90 Degree Tube | Swivel | for 5/8" Hose ID

Name: F-DINLX90-10-26 by Kurt Hydraulics | Female DIN Light Universal Seat | 90 Degree Tube | Swivel | for 5/8" Hose ID
Brand: Kurt Hydraulics
SKU: F-DINLX90-10-26 Kurt
Price: 25.21 USD
Availability: InStock

Save $3.15

$28.36

$28.36 - $28.36

$28.36

$25.21

$25.21 - $25.21

$25.21

by Kurt Hydraulics
F-DINLX90 - Din Light Universal Seat 90 deg. Bent Tube Female Swivel

Kurt Fittings and Hose should only be used together.

Quantity

Specifications for Variant SKU: F-DINLX90-10-26 Kurt
Shape (Orientation):	90 Degree
Ends Configuration:	5/8in Hose Barb, L26 Female DIN
Special Properties:	Swivel

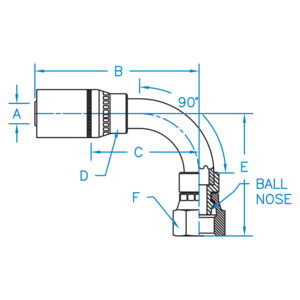

Part Number	A	B	C	D	E	F	Hose ID (In)	Thread
F-DINLX90-04-14	0.250	N/A	N/A	N/A	N/A	N/A	1/4"	M14 X 1.5
F-DINLX90-04-16	0.250	2.380	1.125	5/8	1.732	7/8	1/4"	M16 x 1.5
F-DINLX90-06-16	0.375	N/A	N/A	N/A	N/A	7/8	3/8"	M16 X 1.5
F-DINLX90-06-18	0.375	3.38	1.88	3/4	1.98	15/16	3/8"	M18 X 1.5
F-DINLX90-08-22	0.500	2.995	1.347	7/8	2.018	1-1/16	1/2"	M22 X 1.5
F-DINLX90-10-26	0.625	3.317	1.437	1-1/8	2.396	1-1/4	5/8"	M26 X 1.5
F-DINLX90-12-30	0.750	3.938	2.058	1-1/8	3.335	1-7/16	3/4"	M30 X 2.0
F-DINLX90-16-36	1.000	5.431	3.151	1-3/8	3.218	1-3/4	1.000"	M36 X 2.0

Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
