F-DL4504-0612-K2 by Kurt Hydraulic | K2 Series | 1/4" Hose Barb x M12X1.5 Female Din Light 24° Seat Swivel w/ O-Ring | 45° Elbow | Carbon Steel

F-DL4504-0612-K2 by Kurt Hydraulic | K2 Series | 1/4" Hose Barb x M12X1.5 Female Din Light 24° Seat Swivel w/ O-Ring | 45° Elbow | Carbon Steel

Save $66.93 Save $66.93
$167.32
$167.32 - $167.32
$167.32
$100.39
$100.39 - $100.39
$100.39

Kurt Hydraulics
Din Light 24° Seat 45° Bent Tube Female Swivel With O-Ring
Specifications for Variant SKU: F-DL4504-0612-K2 Kurt
Series: K2 Series
Shape (Orientation): 45 Degree
Ends Configuration: 1/4in Hose Barb, L06 Female DIN
Material(s): Carbon Steel

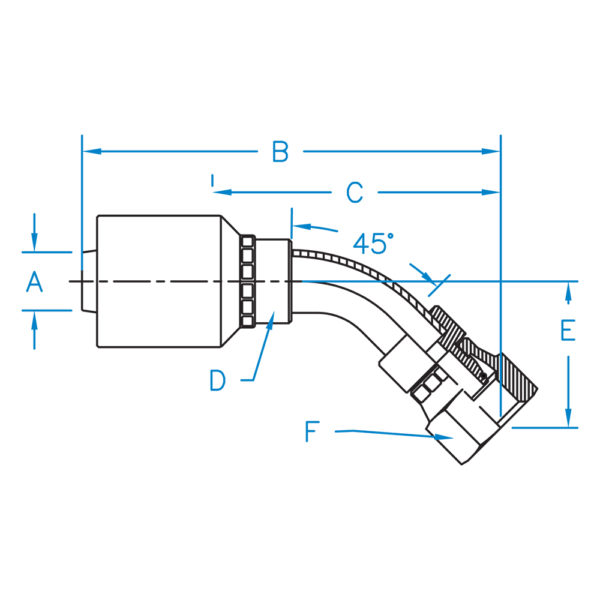

Part Number Hose I.D. (in.) B C D E F Thread
F-DL4504-0612-K2 1/4" 3.38" 2.32" 5/8" 0.92" 9/16" M12 X 1.5
F-DL4504-0814-K2 1/4" 3.37" 2.31" 5/8" 0.91" 11/16" M14 X 1.5
F-DL4504-1016-K2 1/4" 3.60" 2.54" 5/8" 1.10" 3/4" M16 X 1.5
F-DL4506-1016-K2 3/8" 3.93" 2.56" 11/16" 1.10" 3/4" M16 X 1.5
F-DL4506-1218-K2 3/8" 3.82" 2.59" 3/4" 1.13" 7/8" M18 X 1.5
F-DL4508-1522-K2 1/2" 4.28" 2.94" 7/8" 1.22" 1-1/16" M22 X 1.5
Kurt Hydraulics

Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
