F-DL4512-22-30-W by Kurt Hydraulics | Female DIN Light 24 Degree Seat | 45 Degree Bent Tube | Swivel With O-Ring | for 3/4" Hose ID

F-DL4512-22-30-W by Kurt Hydraulics | Female DIN Light 24 Degree Seat | 45 Degree Bent Tube | Swivel With O-Ring | for 3/4" Hose ID

Save $27.81 Save $27.81
$69.52
$69.52 - $69.52
$69.52
$41.71
$41.71 - $41.71
$41.71
by Kurt Hydraulics
F-DL45-W - Din Light 24 deg. Seat 45 deg. Bent Tube Female Swivel With O-Ring
Kurt Fittings and Hose should only be used together.
Specifications for Variant SKU: F-DL4512-22-30-W Kurt
Series: W Series
Shape (Orientation): 45 Degree
Ends Configuration: 3/4in Hose Barb, L30 Female DIN
Special Properties: Swivel

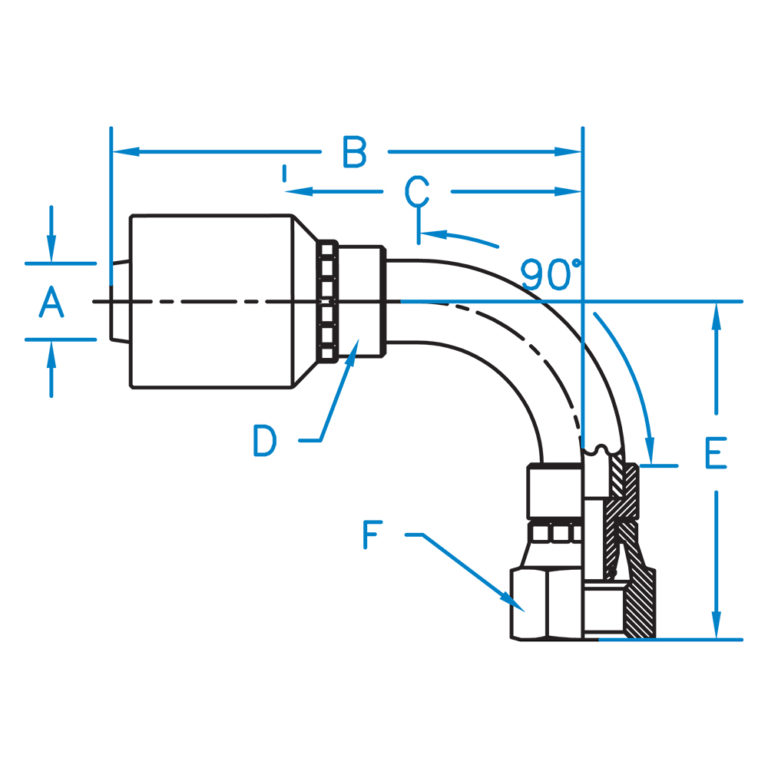

Part Number A B C D E F Hose ID
(In)		 Thread
F-DL4506-10-16-W N/A N/A N/A N/A N/A N/A N/A N/A
F-DL4506-12-18-W 0.375 3.816 2.586 3/4 R 1.130 15/16 3/8" M18 X 1.5
F-DL4508-15-22-W 0.500 4.275 2.935 7/8 R 1.220 1-1/16 1/2" M22 X 1.5
F-DL4510-18-26-W 0.625 4.884 2.784 1 1.279 1-1/4 5/8" M26 X 1.5
F-DL4512-18-26-W 0.750 4.683 2.804 1 1.279 1-1/4 3/4" M26 X 1.5
F-DL4512-22-30-W 0.750 N/A N/A N/A N/A 1-7/16 3/4" M30 X 2.0
F-DL4516-28-36-W 1.000 5.805 3.68 1-5/16 1.661 1-3/4 1.000" M36 X 2.0
F-DL4520-35-45-W 1.250 N/A N/A 1-5/8 N/A 2.000 1-1/4" M45 X 2.0


Kurt Hydraulics

Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
