F-JISX-06-06-W by Kurt Hydraulics | Female JIS 30 Degree | Swivel | for 3/8" Hose ID

Name: F-JISX-06-06-W by Kurt Hydraulics | Female JIS 30 Degree | Swivel | for 3/8" Hose ID
Brand: Kurt Hydraulics
SKU: F-JISX-06-06-W Kurt
Price: 7.17 USD
Availability: InStock

Save $4.78

$11.95

$11.95 - $11.95

$11.95

$7.17

$7.17 - $7.17

$7.17

by Kurt Hydraulics
F-JISX-W - JIS 30 deg. Female Swivel

Kurt Fittings and Hose should only be used together.

Specifications for Variant SKU: F-JISX-06-06-W Kurt
Series:	W Series
Shape (Orientation):	Straight
Special Properties:	Swivel

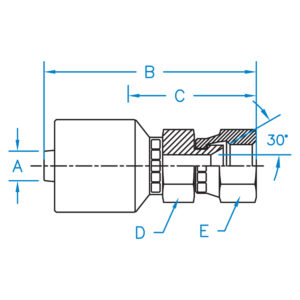

Part Number	A	B	C	D	E	Hose ID (In)	Thread
F-JISX-06-06-W	0.375	2.615	1.245	11/16	7/8	3/8"	3/8-19
F-JISX-08-08-W	0.500	2.620	1.280	7/8	1.000	1/2"	1/2-14
F-JISX-10-10-W	0.625	3.692	1.592	1-1/8	1-1/4	5/8"	5/8-14
F-JISX-12-12-W	0.750	3.520	1.641	1-1/8	1-1/4	3/4"	3/4-14
F-JISX-16-16-W	1.000	3.744	1.631	1-3/8	1-1/2	1.000"	1-11

Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
