F-JISX-08-08-K2 by Kurt Hydraulic | K2 Series | 1/2" Hose Barb x 1/2" Female JIS Swivel | Carbon Steel

Name: F-JISX-08-08-K2 by Kurt Hydraulic | K2 Series | 1/2" Hose Barb x 1/2" Female JIS Swivel | Carbon Steel
Brand: Kurt Hydraulics
SKU: F-JISX-08-08-K2 Kurt
Price: 20.25 USD
Availability: InStock

Save $13.50

$33.75

$33.75 - $33.75

$33.75

$20.25

$20.25 - $20.25

$20.25

Kurt Hydraulics
JIS 30° Female Swivel

Specifications for Variant SKU: F-JISX-08-08-K2 Kurt
Series:	K2 Series
Shape (Orientation):	Straight
Ends Configuration:	1/2in Hose Barb x 1/2in Female JIS
Material(s):	Carbon Steel
Special Properties:	Swivel

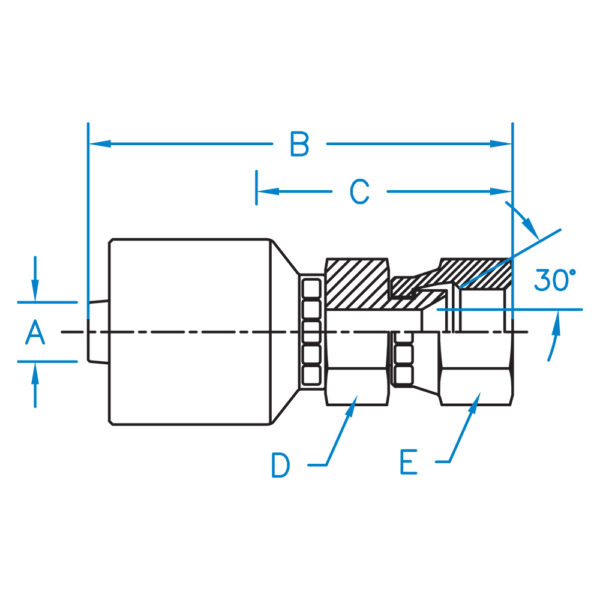

Part Number	Hose I.D. (in.)	B	C	D	E	Thread
F-JISX-04-04-K2	1/4"	2.20"	1.12"	9/16"	3/4"	1/4 – 19
F-JISX-06-06-K2	3/8"	2.62"	1.25"	11/16"	7/8"	3/8 – 19
F-JISX-08-08-K2	1/2"	2.62"	1.28"	7/8"	1"	1/2 – 14

Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
