F-JISX-10-10 by Kurt Hydraulics | Female JIS 30° Seat | Swivel | for 5/8" Hose ID

Name: F-JISX-10-10 by Kurt Hydraulics | Female JIS 30° Seat | Swivel | for 5/8" Hose ID
Brand: Kurt Hydraulics
SKU: F-JISX-10-10 Kurt
Price: 25.39 USD
Availability: InStock

Save $3.17

$28.56

$28.56 - $28.56

$28.56

$25.39

$25.39 - $25.39

$25.39

by Kurt Hydraulics
F-JISX - JIS 30 deg. Female Swivel

Kurt Fittings and Hose should only be used together.

Quantity

Specifications for Variant SKU: F-JISX-10-10 Kurt
Series:	JISX Series
Shape (Orientation):	Straight
Special Properties:	Swivel

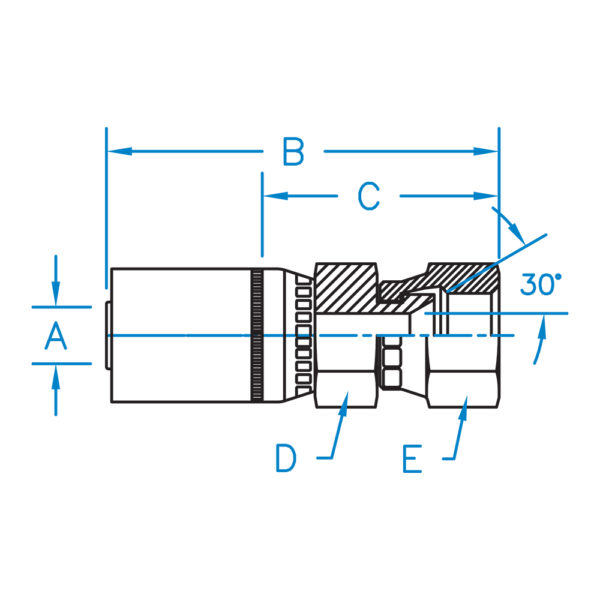

Part Number	A	B	C	D	E	Hose ID (In)	Thread
F-JISX-04-04	0.250	2.545	1.220	9/16	3/4	1/4"	1/4-19
F-JISX-06-06	0.375	2.826	1.326	11/16	7/8	3/8"	3/8-19
F-JISX-08-08	0.500	3.121	1.619	7/8	1.000	1/2"	1/2-14
F-JISX-10-10	0.625	3.242	1.743	1-1/8	1-1/4	5/8"	5/8-14
F-JISX-12-12	0.750	3.322	1.736	1-1/8	1-1/4	3/4"	3/4-14
F-JISX-16-16	1.000	3.456	1.722	1-3/8	1-1/2	1.000"	1-11

Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
