F-KOMX45-0614-K2 by Kurt Hydraulic | K2 Series | 3/8" Hose Barb x M141.5 Female Komatsu JIS 30° Seat Swivel | 45° Elbow | Carbon Steel

Name: F-KOMX45-0614-K2 by Kurt Hydraulic | K2 Series | 3/8" Hose Barb x M141.5 Female Komatsu JIS 30° Seat Swivel | 45° Elbow | Carbon Steel
Brand: Kurt Hydraulics
SKU: F-KOMX45-0614-K2 Kurt
Price: 74.65 USD
Availability: InStock

Save $49.77

$124.42

$124.42 - $124.42

$124.42

$74.65

$74.65 - $74.65

$74.65

Kurt Hydraulics
Komatsu JIS 30° Seat 45° Bent Tube Female Swivel

Specifications for Variant SKU: F-KOMX45-0614-K2 Kurt
Series:	K2 Series
Shape (Orientation):	45 Degree
Material(s):	Carbon Steel
Special Properties:	Swivel

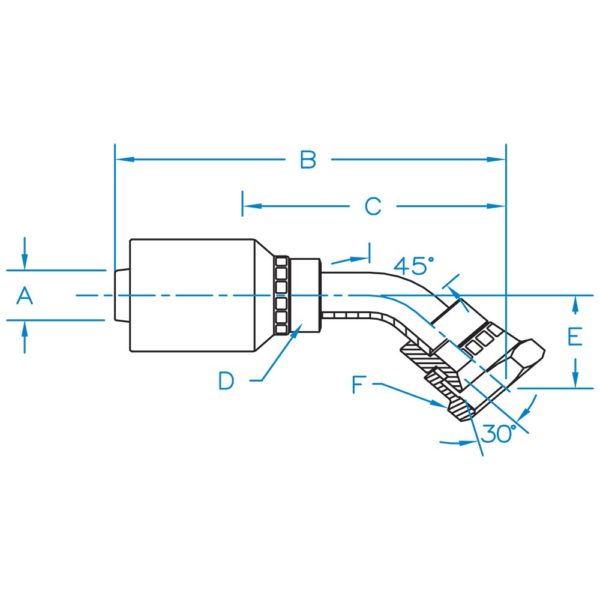

Part Number	Hose I.D. (in.)	B	C	D	E	F	Thread
F-KOMX45-0414-K2	1/4"	3.30"	2.24"	5/8"	0.80"	11/16"	M14 x 1.5
F-KOMX45-0614-K2	3/8"	3.63"	2.26"	11/16"	0.80"	11/16"	M14 x 1.5
F-KOMX45-0618-K2	3/8"	3.63"	2.26"	11/16"	0.80"	7/8"	M18 x 1.5
F-KOMX45-0822-K2	1/2"	3.59"	2.25"	7/8"	0.94"	1-1/16"	M22 x 1.5
F-KOMX45-0824-K2	1/2"	3.86"	2.52"	7/8"	1.04"	1-1/4"	M24 x 1.5

Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
