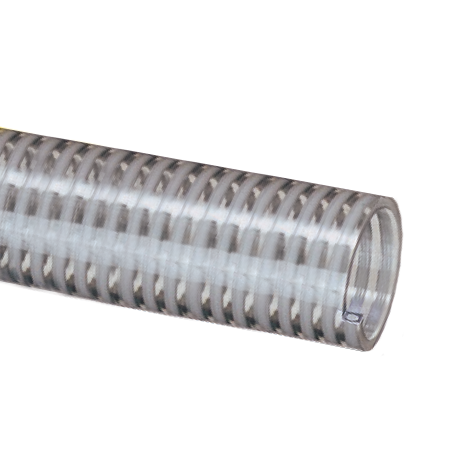

F125X100 Kuriyama Tigerflex F Series Heavy Duty PVC Tiger Suction Hose - 1-1/4" - 100ft

F125X100 Tigerflex by Kuriyama | F Series | Heavy Duty Tiger Suction Hose | 1-1/4" ID | PVC | 100ft Length

Save $102.00 Save $102.00
$357.00
$357.00 - $357.00
$357.00
$255.00
$255.00 - $255.00
$255.00

Kuriyama Tigerflex F™ Series Heavy Duty PVC Suction Hose




Package Quantity: 100 FT

Specifications for Variant SKU: F125X100 Kuriyama | 100 |
Brand: Tigerflex
Series: F Series
Hose Color(s): White/Off-White & Clear/Semi-Clear
Internal Diameter: 1.25in
Outer Diameter: 1.56in
Tubing Construction: PVC
Applicable Specs & Approvals: RoHS Compliant

SPECIFICATIONS

Application: Irrigation lines, Rental and construction dewatering, Pumps, trash, Water suction - heavy duty, SAE Rating: N/A
Other Ratings: N/A Tube: PVC
Reinforcement: Rigid PVC Helix Cover: N/A
Temperature Range: -4 deg. F (-20 deg. C) to 150 deg. F (+65 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Specifications RoHS(10)
Other Features:
  • Transparent Construction (F Series only) - "See-the-flow." Allows for visual confirmation of material flow.
  • Smooth Outer Cover (Sizes 3/4" - 5") - Provides increased pressure rating and smooth surface for banding.
  • Convoluted Outer Cover (Sizes 6" & 8") - Provides increased hose flexibility.
Part Number ID ID OD OD Working Pressure (PSI) Vacuum Rating (in. Hg) Approx. Bending Radius Standard Length Weight (Lbs/Ft)
(in.) (mm) (in.) (mm) 68 deg. F 104 deg. F 68 deg. F 104 deg. F (in @ 68 deg. F) (ft.)
F075X100 3/4" 19.0mm 1.01" 25.6mm 115 PSI 75 PSI Full 28 in.Hg 3" 100ft 0.21 lbs
F100X100 1" 25.4mm 1.26" 32.0mm 100 PSI 65 PSI Full 28 in .Hg 3" 100ft 0.27 lbs
F125X100 1-1/4" 31.7mm 1.56" 39.6mm 100 PSI 65 PSI Full 26 in .Hg 4" 100ft 0.36 lbs
F200X100 2" 50.8mm 2.38" 60.4mm 100 PSI 65 PSI Full 26 in. Hg 7" 100ft 0.71 lbs
F250X100 2-1/2" 63.5mm 2.89" 73.4mm 70 PSI 48 PSI Full 26 in. Hg 8" 100ft 0.96 lbs
F300X100 3" 76.2mm 3.44" 87.4mm 70 PSI 45 PSI Full 26 in. Hg 10" 100ft 1.25 lbs
F400X100 4" 101.6mm 4.57" 116.1mm 60 PSI 40 PSI Full 26 in. Hg 15" 100ft 1.95 lbs
F600X100 6" 152.4mm 6.77" 172.0mm 40 PSI 25 PSI 28 in. Hg 22 in. Hg 25" 100ft 3.76 lbs
NOTE: Service life may vary depending on operating conditions and type of material being conveyed. *Actual service temperature range is application dependent.
Kuriyama

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
